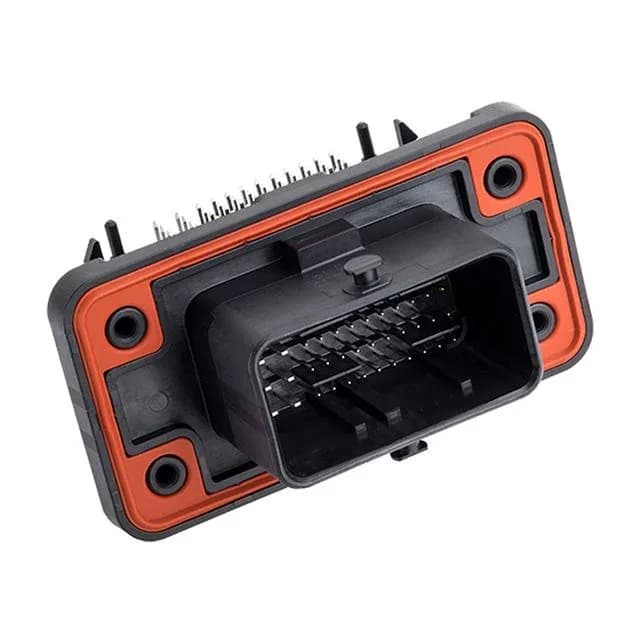

Molex 5007621001 CMC Header – 48 Pos, Right-Angle, 14 VDC

MPN5007621001
Active

Molex CMC 500762 series, 48-position (40 + 8 power) right-angle header, shrouded 4-wall, panel-mount through-hole, solder termination, 14 VDC, UL94 V-0, tin-plated male pins.

$12.3600Ref. price · indicative, final on quote
Molex 5007621001 datasheet (PDF)
RoHSROHS3 Compliant
SeriesCMC 500762
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5007621001 key specifications
ParameterValue
SeriesCMC 500762
TypeMale Pin
MountingPanel Mount, Through Hole, Right Angle
Connector typeHeader
Voltage rating14VDC
Operating temperature-40°C ~ 125°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height1.700\" (43.18mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

5007621001 additional specifications
ParameterValue
PackageTray
FeaturesBoard Guide, Board Lock
ShroudingShrouded - 4 Wall
TerminationSolder
Rows4
Positions48 (40 + 8 Power)
Contact finish - postTin
Contact length - post0.138\" (3.50mm)
Contact finish - matingTin

Product details

Hybrid 48-position layout – 40 signal plus 8 power contacts

The 5007621001: This header carries 48 loaded positions split into 40 signal circuits and 8 power circuits – a hybrid layout that keeps the power path separate from the signal lines within a single connector body. Rated at 14 VDC, this header is designed for low-voltage automotive or industrial power distribution – not for line-voltage AC or high-voltage DC buswork.

Right-angle panel mount – board-edge and harness routing

ROHS3 compliant – the tin-plated contacts and PBT housing meet the current exemption-free RoHS directive.

Frequently asked questions

What is the mating female connector for the Molex 5007621001?

The 5007621001 is a male header from the CMC 500762 series – it mates with a female receptacle from the same series. The exact mating part number depends on the circuit count and keying; confirm the 48-position (40+8) layout against the receptacle's position map.
