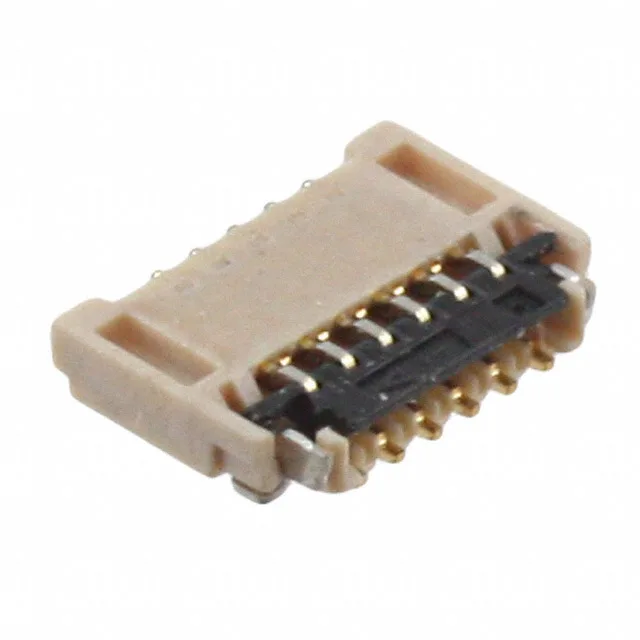

Molex Easy-On 500797 FPC connector, order code 5007971194, 11 positions, 0.30 mm pitch, 0.2 A, 50 V, gold-plated bottom contacts, surface-mount right-angle, solder termination, ZIF flip lock.
| Parameter | Value |
|---|---|
| Series | Easy-On 500797 |
| Mounting type | Surface Mount, Right Angle |
| Cable end type | Tapered |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 50V |
| Current rating | 0.2A |
| Operating temperature | -20°C ~ 85°C |
| Contact material | Copper Alloy |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator material | Polyamide (PA46), Nylon 4/6 |
| Height above board | 0.041\" (1.05mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.012\" (0.30mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.20mm |
| Positions | 11 |
The 5007971194 is the 11-circuit member of Molex's Easy-On 500797 FPC connector series, using a 0.30 mm pitch and bottom-contact ZIF interface. Rated 0.2 A per contact at 50 V, with gold-plated contacts and a flip-lock actuator for positive FPC retention.
The 5007971194 and 500797-1194 share the same 0.30 mm pitch, 11 positions, and bottom-contact ZIF layout. Board-level fit should be verified by comparing the product drawings before substitution.
