Molex 5009130502

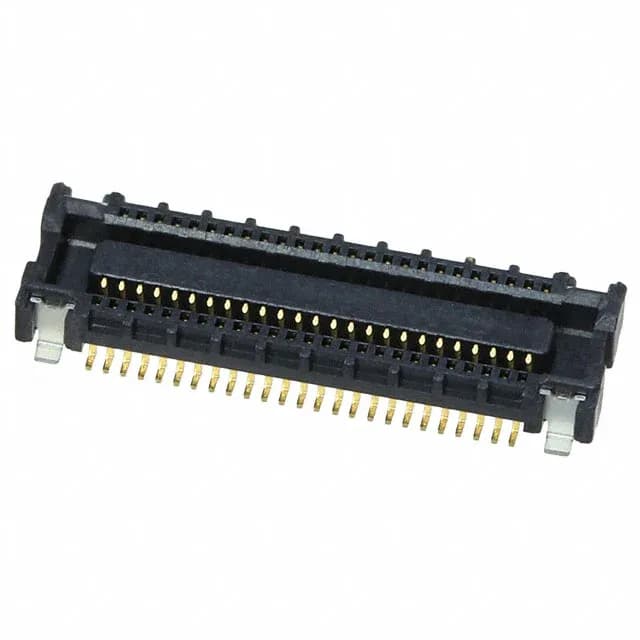

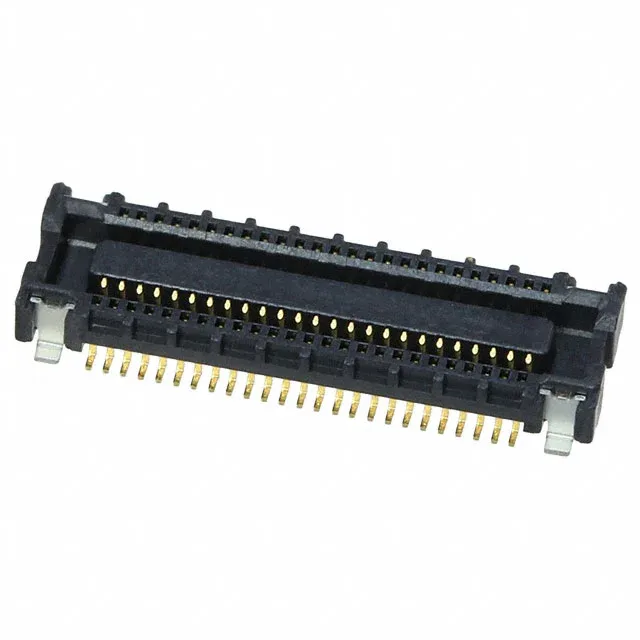

Molex SlimStack 5009130502, 50-Pos 0.40mm Pitch Receptacle

MPN 5009130502
Active

Molex SlimStack 500913, 50-position receptacle, 0.40mm pitch, 2 rows, 1.8mm mated stack height, SMT, gold-plated contacts, solder retention.

$3.3500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesSlimStack 500913
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5009130502 specifications
ParameterValue
SeriesSlimStack 500913
MountingSurface Mount
Connector typeReceptacle, Center Strip Contacts
Height above board0.063\" (1.60mm)
Mated stacking heights1.8mm
Pitch0.016\" (0.40mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions50
Contact finish thickness8.00µin (0.203µm)

Product details

Board-Stacking Interconnect for Dense Mezzanine Designs

The Molex 5009130502 is a 50-position receptacle from the SlimStack 500913 series, designed for board-to-board mezzanine stacking at a 0.40 mm pitch. With two rows of gold-plated contacts and a mated stack height of 1.8 mm, it pairs with the matching SlimStack header to route dense signal arrays between parallel PCBs in space-constrained enclosures.

The 0.40 mm pitch is the tightest common spacing for mezzanine connectors — it packs 50 signals into a roughly 10 mm board edge, but forces fine-line PCB routing (trace/space below 0.15 mm typical) and a controlled-impedance stack-up if used for high-speed differential pairs. Gold plating at 8.00 µin on the contact finish supports repeated mating cycles — useful if the boards are separated during test or field service. Tin plating at this pitch would gall after fewer cycles; gold keeps contact resistance stable through multiple mates.

Solder Retention for Reflow Reliability

This is a practical detail for high-volume pick-and-place assembly — without it, the narrow pitch makes alignment critical.

MPN
5009130502
