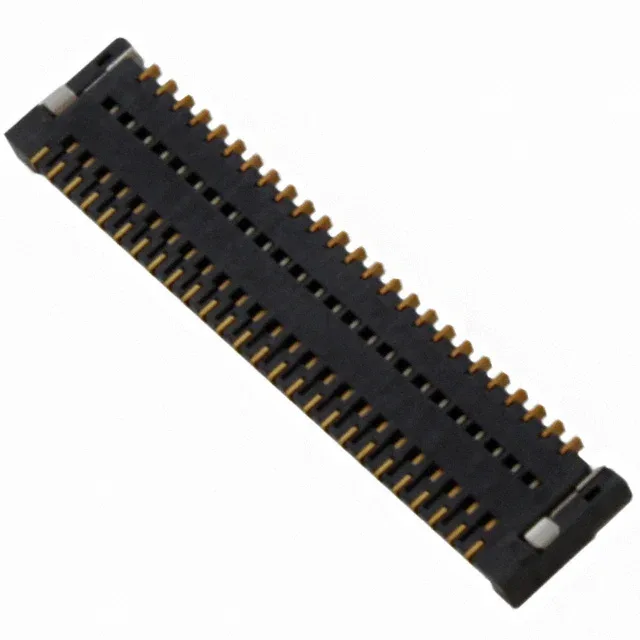

Molex Easy-On 501616 FPC connector, order code 501616-5185, 51 positions, 0.012" (0.30mm) pitch, 0.2A, 50V, gold-plated top contacts, surface-mount right-angle, solder termination, ZIF actuation.
| Parameter | Value |
|---|---|
| Series | Easy-On 501616 |
| Mounting type | Surface Mount, Right Angle |
| Cable end type | Tapered |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Top |
| Voltage rating | 50V |
| Current rating | 0.2A |
| Operating temperature | -40°C~85°C |
| Housing color | Black |
| Actuator color | Gray |
| Contact material | Copper Alloy |
| Housing material | Polymer |
| Actuator material | Polymer |
| Height above board | 0.044\" (1.12mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.012\" (0.30mm) |
| Package | Tape & Reel (TR) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 10 |
| Contact finish | Gold |
| Locking feature | Flip Lock, Backlock |
| FFC, FCB thickness | 0.20mm |
| Positions | 51 |
The 501616-5185 is the 51-position member of Molex's Easy-On 501616 FPC connector series, using a 0.012" (0.30mm) pitch and ZIF actuation with a flip-lock backlock. Rated 0.2A per contact at 50V, with gold-plated top-side contacts and a surface-mount right-angle solder termination that keeps the mated height at 0.044" (1.12mm) above the board.
ROHS3 compliant per.
Contact the distributor for current pricing and lead time.
