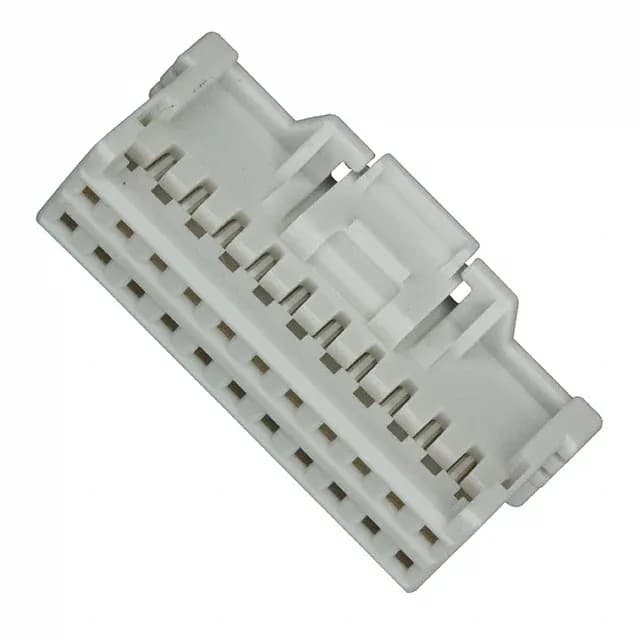

Molex iGrid 501646 series receptacle housing, 22 positions, 2 rows, 2.00mm pitch, latch lock, natural PA66, crimp termination, free-hanging.
| Parameter | Value |
|---|---|
| Series | iGrid 501646 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Operating temperature | -40°C ~ 105°C |
| Color | Natural |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Pitch | 0.079\" (2.00mm) |
| Package | Bulk |
| Row spacing | 0.079\" (2.00mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 22 |
The free-hanging (in-line) mount means this receptacle sits on the wire harness, not on the board.
The natural colour housing is unpigmented PA66 — no colour-coding for keying, so verify orientation by the latch position.
ROHS3 compliant. No official cross-reference or second-source part on record; the iGrid 501646 series is Molex-specific. Confirm the mating header part number and the crimp terminal order code before committing the BOM line.
The mating header is the Molex iGrid 501647 series male pin header, same 2.00 mm pitch and dual-row layout. The latch lock on the receptacle engages with the header's locking ramp for vibration-resistant retention.
Sourced to order against the BOM quantity; availability and pricing confirmed at quote time.
