What This Connector Is

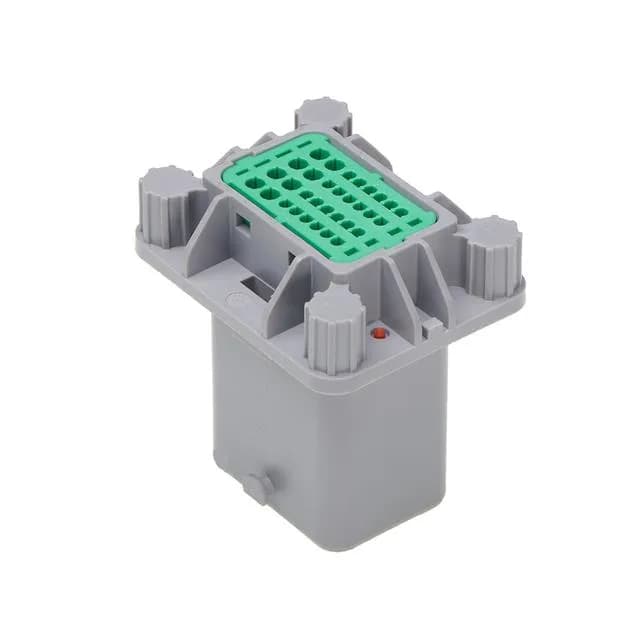

The Molex 5018203231 is a 32-position, 4-row shrouded header from the CMC 501820 series, designed for board-to-cable/wire power interconnect applications. It carries a 12A per circuit rating at 14VDC, with all positions loaded with male pin contacts finished in tin on both the mating and post sides. The four-wall shrouding protects the pins during handling and guides alignment with the mating receptacle — useful in harness assembly where the header is panel-mounted and the cable side gets mated and unmated in service.
Key Specs and What They Mean for Fit
The 12A per circuit at 14VDC is the headline electrical rating — this is a power-grade header, not a signal interconnect. The tin-on-tin contact finish is typical for a moderate mating-cycle budget (50-100 cycles) in a controlled environment; if your application sees frequent connect/disconnect or runs in a corrosive atmosphere, the tin plating may wear or fret, and a gold-plated variant in the same series would be the better call. The 4-row, 32-position layout means the board footprint is dense — confirm your PCB real estate can accommodate the full 4-row pattern before committing the BOM. The panel-mount feature with push-pull fastening locks the header to the chassis, taking mechanical strain off the solder joints during cable mating. The PBT-GF housing (UL94 V-0 rated) handles the thermal load from the 12A circuits without issue inside an enclosed assembly.
Mating and Termination
This header mates with the corresponding CMC 501820 series receptacle housing — the one that accepts the crimp terminals for the cable harness. The shrouded 4-wall design means the plug is guided into place, reducing the chance of bent pins during blind mating in a tight enclosure. Termination is solder to the PCB; the header is through-hole solder, not press-fit, so it's a standard wave or hand-solder assembly step.
