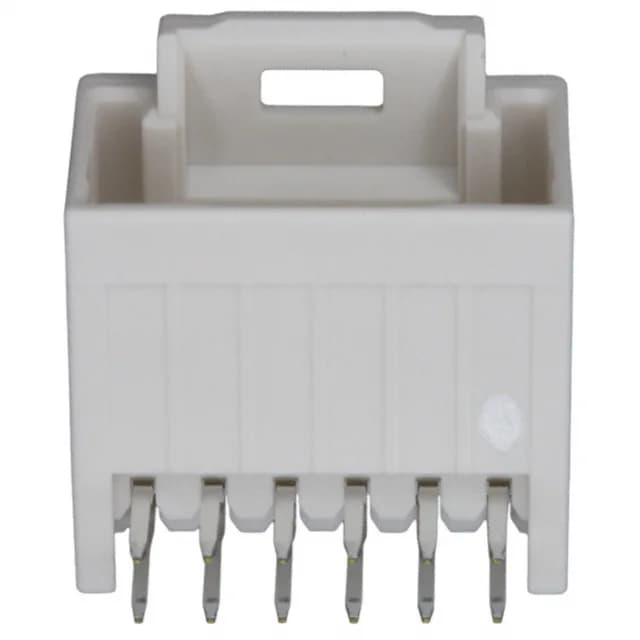

Molex iGrid 501876 header, order code 5018761240, 12 positions, dual row, 2.00 mm pitch, tin-plated mating contacts, through-hole right-angle, solder termination, latch holder fastening, UL94 V-0.
Molex iGrid 5018761240 Header, 12-Pos, 2.00mm Pitch
MPN5018761240
Active
Molex iGrid 501876 header, order code 5018761240, 12 positions, dual row, 2.00 mm pitch, tin-plated mating contacts, through-hole right-angle, solder termination, latch holder fastening, UL94 V-0.
$0.9900Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | iGrid 501876 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.327\" (8.30mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 12 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
What compliance documentation does Molex provide for the 5018761240?
RoHS and REACH compliance documentation is available from Molex upon request.
