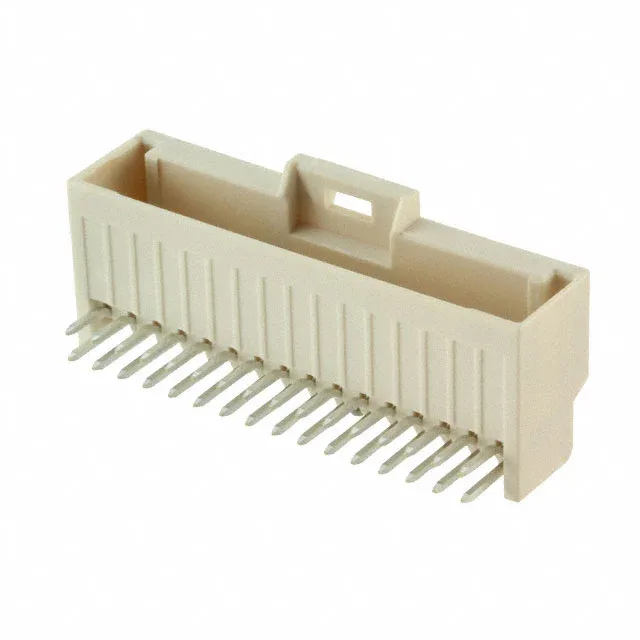

Molex 5018763240
MPN5018763240
Active
CONN HEADER R/A 32POS 2MM
$2.63Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesiGrid 501876
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | iGrid 501876 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.327\" (8.30mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 32 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
