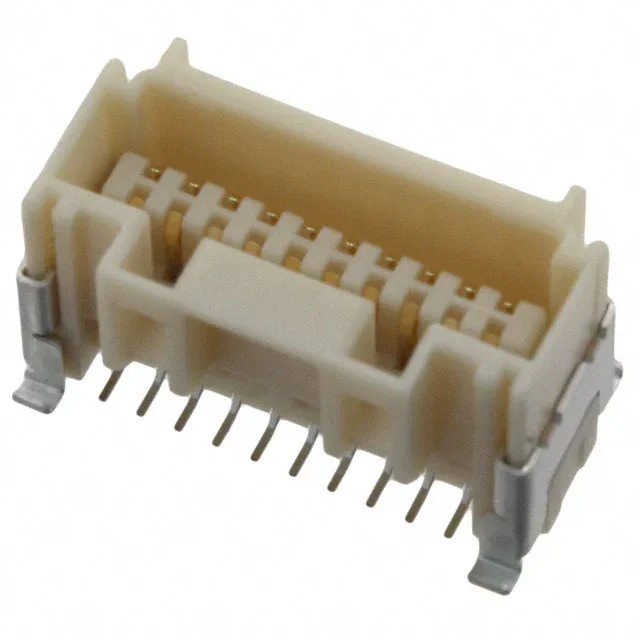

Molex 5019312070
MPN5019312070
Active
CONN RCPT 20POS 0.049 GOLD SMD
$2.94Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDuo-Clasp 501931
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Duo-Clasp 501931 |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Detent Lock |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.346\" (8.80mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Pick and Place, Solder Retention |
| Termination | Solder |
| Applications | General Purpose |
| Rows | 2 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 20 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
