Molex 5022250801
MPN5022250801
Active

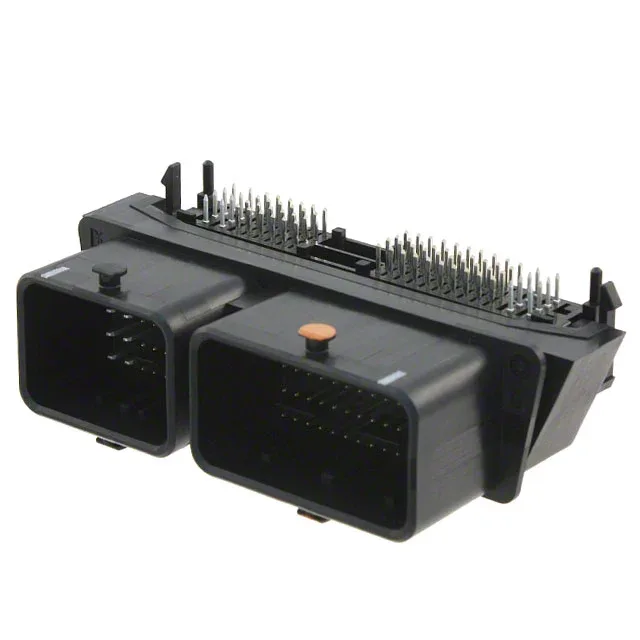

CONN HEADER BRD EDGE 80POS
$15.94Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCMC 502225
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CMC 502225 |
| Type | Male Pin |
| Mounting | Board Edge, Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.980\" (24.90mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide, Board Lock, Mounting Flange |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Rows | 4 |
| Positions | 80 (48 + 32) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
