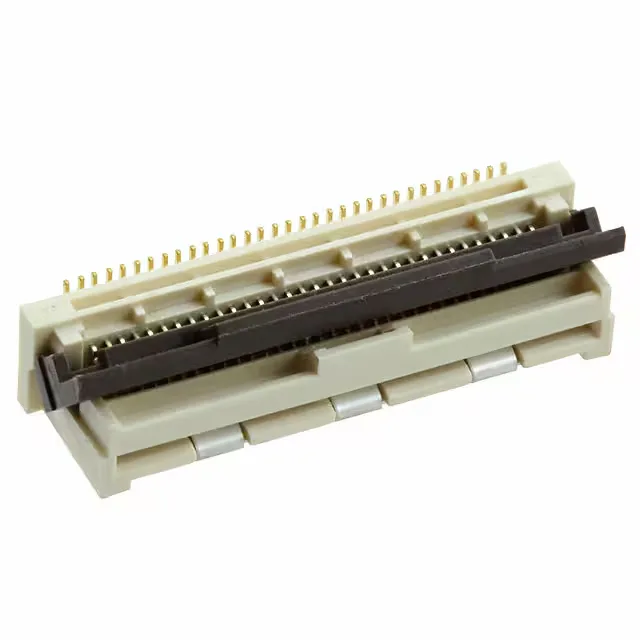

Molex 5022313300
MPN5022313300
Active
CONN FFC VERT 33POS 0.50MM SMD
$2.7Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEasy-On 502231
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Easy-On 502231 |
| Mounting | Surface Mount |
| Cable end type | Straight |
| Flat flex type | FFC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 50V |
| Current rating | 0.4A |
| Operating temperature | -25°C ~ 85°C |
| Housing color | Natural |
| Actuator color | Brown |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Height above board | 0.238\" (6.05mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 33 |
