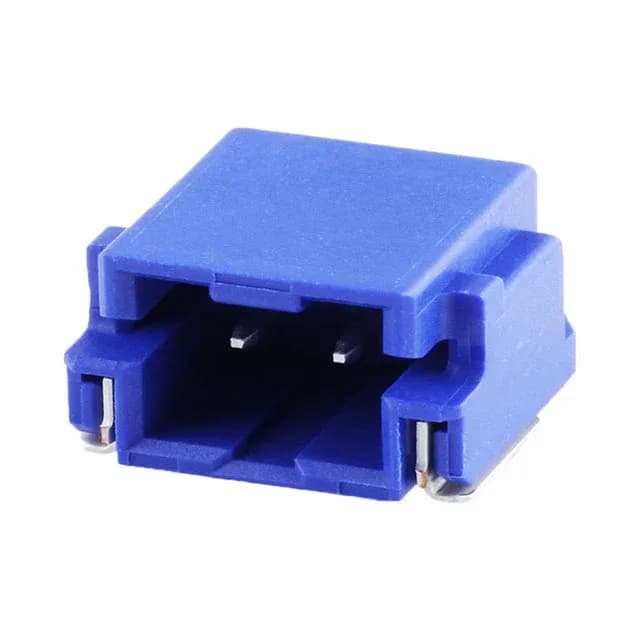

Molex DuraClik 502352 series, 5023520203, 2.00 mm pitch, 2-circuit, single-row, SMT right-angle pin header, shrouded with latch holder, tin-plated contacts, rated 3 A per contact at 125 V, -40°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | DuraClik 502352 |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 125V |
| Current rating | 3A per Contact |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Blue |
| Insulation height | 0.252\" (6.40mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
Molex 5023520203 is a 2-circuit, single-row header from the DuraClik 502352 series, designed for board-to-cable/wire applications.
The UL94 V-0 nylon housing withstands the reflow profile without deformation. The 0.252" (6.40 mm) insulation height provides clearance above the board for the mating receptacle's latch mechanism — confirm the z-height budget in your enclosure before layout.
Yes, the DuraClik 502352 series is listed for automotive and industrial use.
