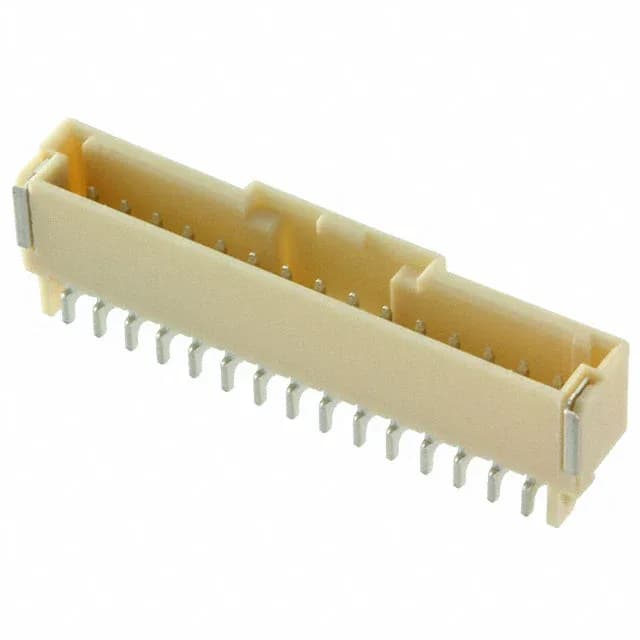

Molex DuraClik 502352 series, 5023521510, board-to-cable/wire header, 15 positions, 2.00 mm pitch, SMT right-angle, shrouded with latch holder, gold-plated male pins, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | DuraClik 502352 |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.252\" (6.40mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Features | Solder Retention |
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 15 |
| Contact finish - mating | Gold |
The 5023521510: The header includes a solder retention feature, which anchors the SMT leads to the board pads during reflow and provides additional shear-force resistance from cable strain after assembly. This is a practical advantage in vibration-prone automotive and industrial installations where the connector sees mechanical load through the wire harness.
The 5023521510 is a shrouded header with a latch holder that mates with a DuraClik 502352 series receptacle housing. The specific mating part number depends on circuit count and wire exit orientation — confirm the matching receptacle and crimp terminal from the same series for a complete wire-to-board assembly.
