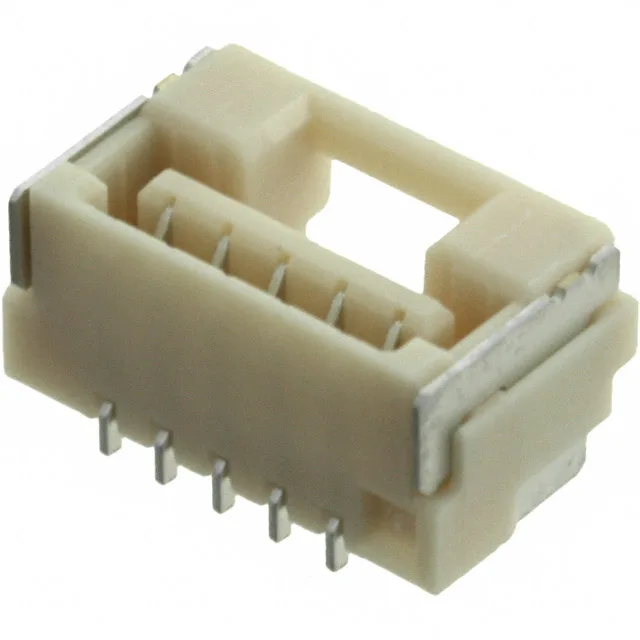

Molex CLIK-Mate 502386, Board to Cable/Wire receptacle, 5 positions, 1.25mm pitch, SMT right-angle, Tin contacts, Latch Holder, 1A, 50V, UL94 V-0, -40°C ~ 105°C.
| Parameter | Value |
|---|---|
| Series | CLIK-Mate 502386 |
| Type | Forked |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.215\" (5.45mm) |
| Insulation material | Resin |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place, Solder Retention |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
It's the board-mount half that mates with a corresponding cable plug. The 1.25mm pitch and right-angle SMT orientation make it a compact choice for edge-mounting on a PCB, saving space in tight enclosures.
Pick-and-place compatible with solder retention features, this part is ready for automated SMT assembly.
Submit an RFQ for current pricing and lead time—no stock-holding claim is made here.
The mating pitch is 0.049" (1.25mm). This is a single-row, 5-position receptacle.
