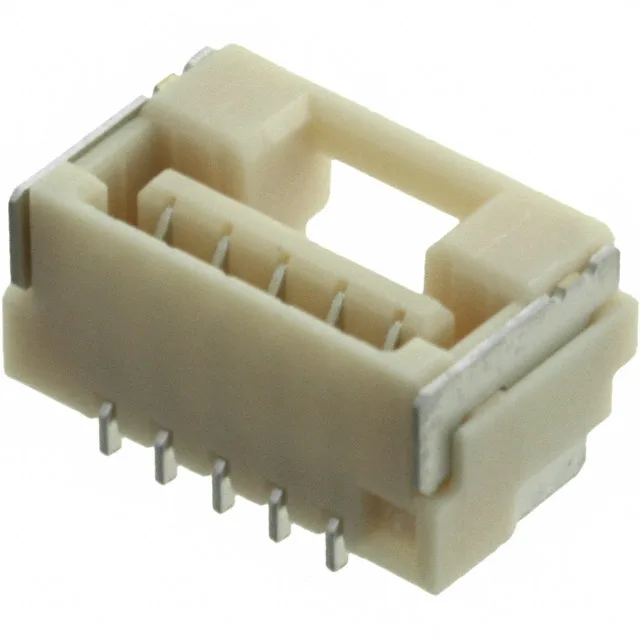

Molex 5023860570
MPN5023860570
Active
CONN RCPT 5POS 0.049 TIN SMD R/A
$0.75Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCLIK-Mate 502386
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CLIK-Mate 502386 |
| Type | Forked |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.215\" (5.45mm) |
| Insulation material | Resin |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
