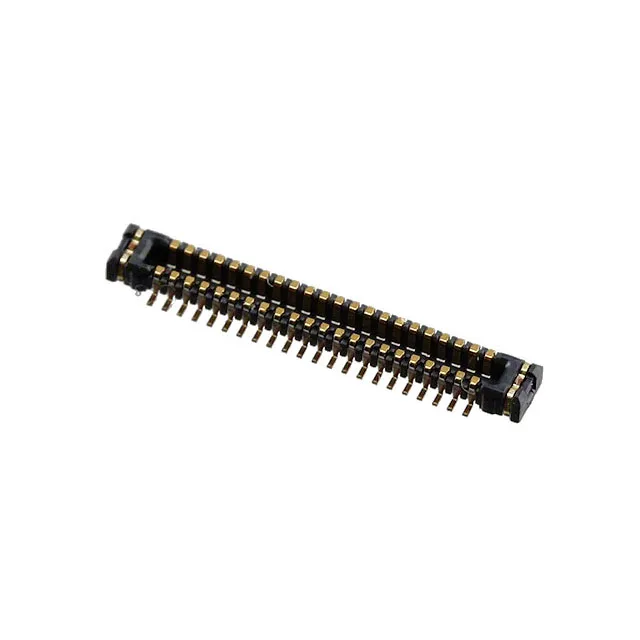

Molex SlimStack 5024304410, 44-pos 0.40mm Pitch Plug

MPN5024304410
Obsolete

Molex SlimStack 502430 series, Plug Outer Shroud Contacts, 44 positions, 2 rows, 0.016" (0.40mm) pitch, Surface Mount, Gold 4.00µin, 0.031" (0.80mm) height above board, 1mm mated stacking height.

$1.7900Ref. price · indicative, final on quote
5024304410 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5024304410 Technical Specifications
ParameterValue
SeriesSlimStack 502430
Mounting typeSurface Mount
Connector typePlug, Outer Shroud Contacts
Height above board0.031\" (0.80mm)
Mated stacking heights1mm
Pitch0.016\" (0.40mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions44
Contact finish thickness4.00µin (0.100µm)

Product details

The Molex 5024304410 is a 44-position plug from the SlimStack 502430 series, carrying outer shroud contacts in a 2-row, 0.40mm pitch layout.

The 0.40mm pitch drives the board-level routing density — each signal pair sits on a tight grid, so the PCB layout must accommodate fine trace widths and via spacing.

Comparison Within the SlimStack 502430 Series

Within the same SlimStack 502430 family, the 5024304410 at 44 positions sits above lower-count siblings such as the 5024303410 (34 positions) at the same 0.40mm pitch and 1mm stacking height. The position count is the sole selection axis — the footprint length scales with the number of contacts, while the board-to-board clearance and routing pitch remain identical across the series.

Frequently asked questions

Where can I buy the Molex 5024304410?

Submit an RFQ for current availability and pricing — each quote is confirmed at time of request against the BOM quantity.

What is the replacement for 5024304410?

For a pin-compatible alternative within the same SlimStack series, a parametric search at the same 0.40mm pitch and 1mm mated height with 44 positions is the starting point; confirm fit against the board footprint before specifying.
