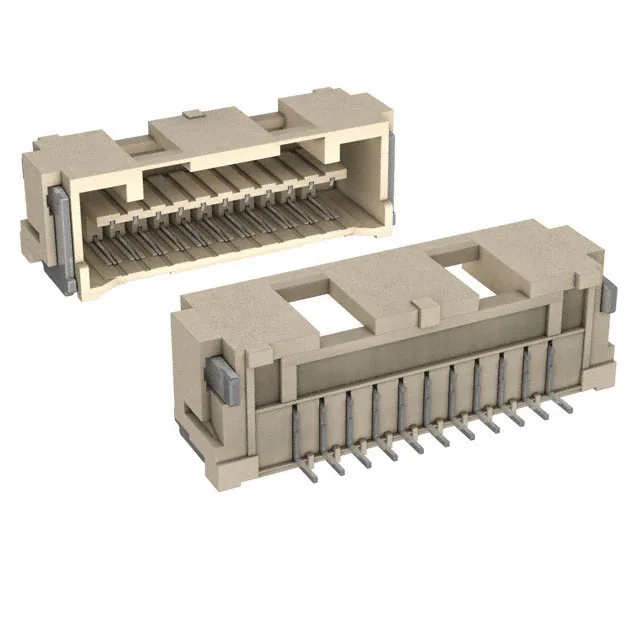

Molex CLIK-Mate 502585 series, 11-position single-row receptacle, 0.059" (1.50 mm) pitch, right-angle surface-mount, tin-plated forked contacts, latch holder, beige UL94 V-0 housing, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | CLIK-Mate 502585 |
| Type | Forked |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Beige |
| Insulation height | 0.250\" (6.35mm) |
| Insulation material | Resin |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) |
| Features | Pick and Place, Solder Retention |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 11 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
The 5025851170: All 11 positions are loaded — no optional slots, so the BOM line matches the full circuit count.
The pick-and-place feature allows vacuum-nozzle handling on SMT lines, and solder retention holds the part during reflow, reducing tombstoning and misalignment. Tape & Reel packaging (TR) feeds directly into automated placement equipment.
The pitch is 0.059" (1.50 mm) and the mounting type is surface mount, right-angle.
Yes, the part is listed as RoHS compliant per the manufacturer's specification.
Yes, the part includes pick-and-place and solder retention features for automated SMT assembly.
