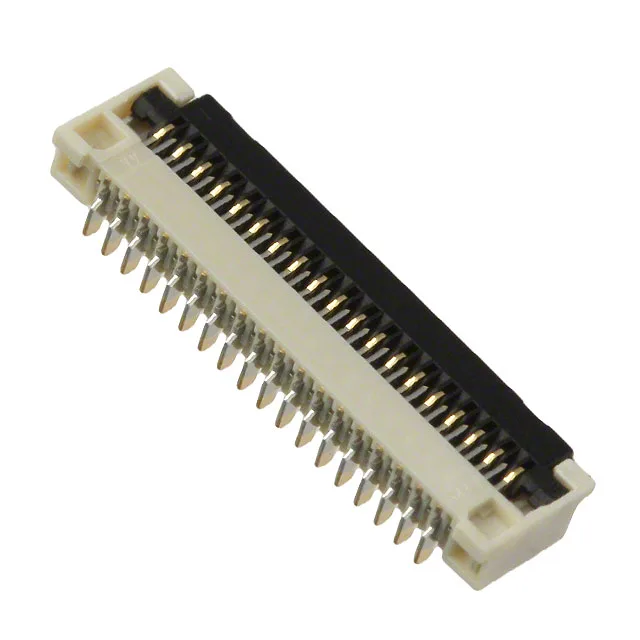

Molex 5033203760
MPN5033203760
Active
$1.6599Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Easy-On 503320 |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tapered |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 50V |
| Current rating | 0.3A |
| Operating temperature | -40°C ~ 85°C |
| Housing color | Beige |
| Actuator color | Black |
| Contact material | Copper Alloy |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0, UL94 HB |
| Pitch | 0.010\" (0.25mm) |
| Package | Tape & Reel (TR) |
| Features | Solder Retention |
| Termination | Solder |
| Mating cycles | 10 |
| Contact finish | Gold |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.20mm |
| Positions | 37 |
| Contact finish thickness | 3.94µin (0.10µm) |
