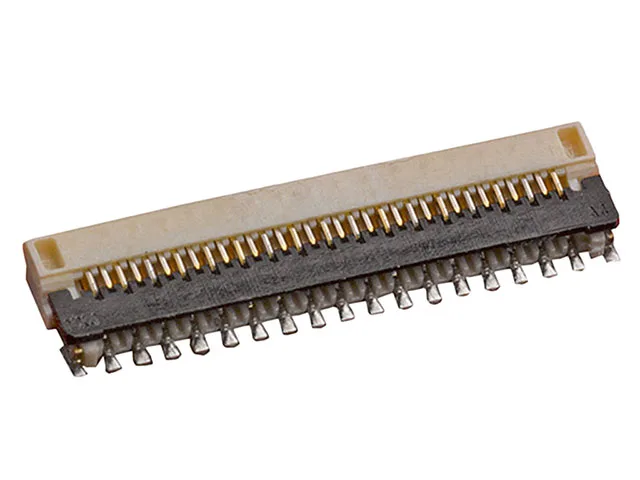

Molex 5035664102
MPN5035664102
Active
$1.3209Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Easy-On 503566 |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tabbed |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 50V |
| Current rating | 0.2A |
| Operating temperature | -40°C ~ 105°C |
| Housing color | White |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Polyamide (PA), Nylon, Glass Filled |
| Height above board | 0.037\" (0.95mm) |
| Material flammability rating | UL94 V-0, UL94 HB |
| Pitch | 0.012\" (0.30mm) |
| Package | Tape & Reel (TR) |
| Features | Solder Retention |
| Termination | Solder |
| Contact finish | Gold |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.20mm |
| Positions | 41 |
