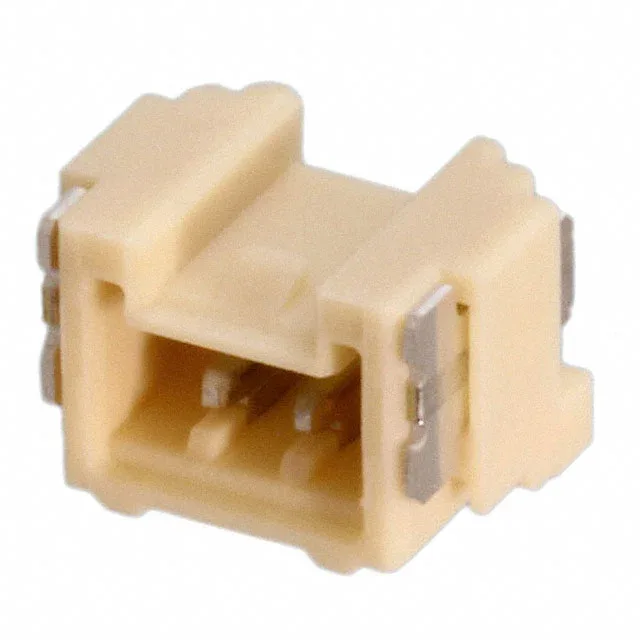

Molex 5041940270
MPN5041940270
Active
CONN HEADER SMD 2POS 1.25MM
$0.98Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-Lock 504194
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-Lock 504194 |
| Type | Male Blade |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Lock |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.163\" (4.15mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Mated stacking heights | 7.3mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
