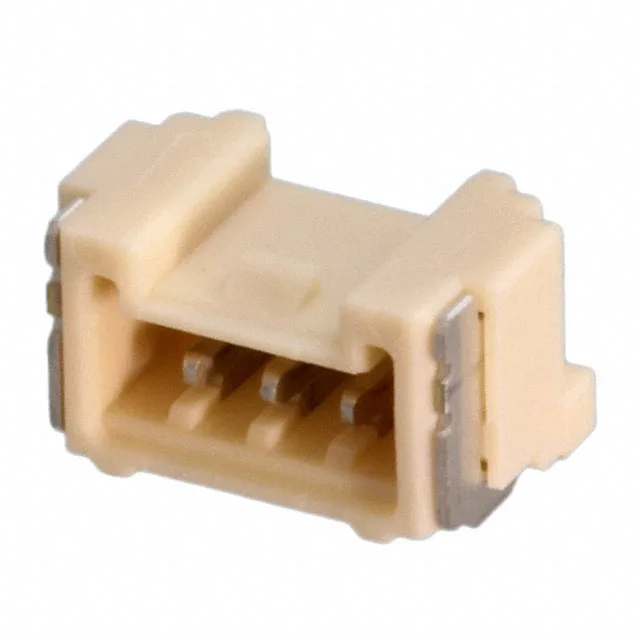

3-circuit member of the Micro-Lock 1.25 mm line
The 5041950370 is the 3-circuit member of Molex's Micro-Lock 504195 header series, a shrouded single-row board-to-wire interconnect at 1.25 mm pitch.
Molex Micro-Lock 504195 header, order code 5041950370, 3 positions, single row, 1.25 mm pitch, tin-plated male blade contacts, surface-mount right-angle, solder termination.
$0.9400Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-Lock 504195 |
| Gender | Male Blade |
| Mounting type | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.163\" (4.15mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
Product details
Frequently asked questions
What compliance documentation does Molex provide for 5041950370?
RoHS and REACH compliance documentation is available from Molex per standard product support.
What is the closest pin-compatible alternative in the Micro-Lock 504195 series?
The Micro-Lock 504195 series offers the same 1.25 mm pitch and single-row shrouded layout across multiple position counts. A 2-position or 4-position sibling shares the same footprint and mating interface — the position count is the only variable.
