Molex 5046182410 — Board-to-Board Connectors

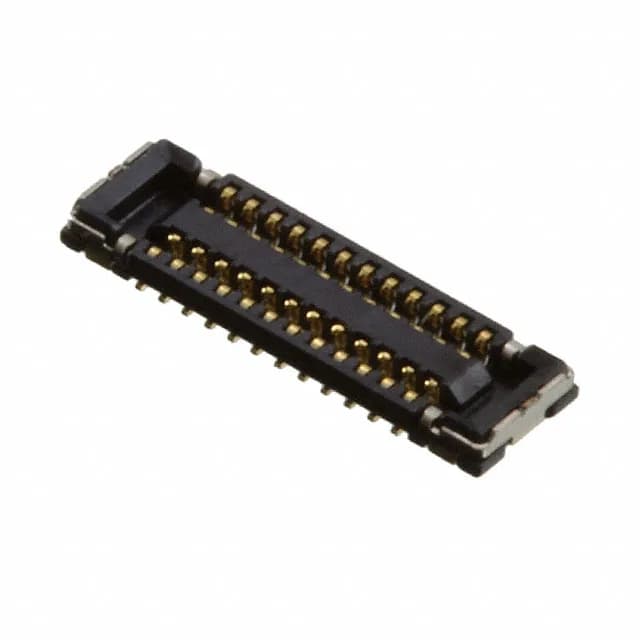

Molex 5046182410 SlimStack Receptacle, 0.35mm Pitch

MPN5046182410
Obsolete

Molex SlimStack 504618 series receptacle, center strip contacts, 24 circuits, 2 rows, 0.014" (0.35mm) pitch, 0.024" (0.61mm) height above board, gold contact finish, surface mount with solder retention, Tape & Reel.

$1.0500Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

5046182410 specifications
ParameterValue
SeriesSlimStack 504618
MountingSurface Mount
Connector typeReceptacle, Center Strip Contacts
Height above board0.024\" (0.61mm)
Mated stacking heights0.6mm
Pitch0.014\" (0.35mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions24

Product details

0.35 mm Pitch, 0.6 mm Stack — Ultra-Compact Board-to-Board Mezzanine

The Molex 5046182410 is a 24-circuit receptacle from the SlimStack 504618 series, designed as a board-to-board mezzanine interconnect. With a 0.014" (0.35 mm) pitch and a mated stacking height of 0.6 mm, it fits the tightest z-height budgets in portable or multi-board assemblies — think stacked PCBs in handheld devices where every tenth of a millimeter counts.

The 0.014" (0.35 mm) pitch and 0.024" (0.61 mm) height above board define the fit constraints for the 24-position, 2-row receptacle.

Obsolete — Sourcing the 5046182410 Now

The 5046182410 carries an official Obsolete lifecycle status. If a pin-compatible drop-in exists within the SlimStack 504618 series, it would share the same 0.35 mm pitch and 24-circuit count, but no official cross-reference is documented.

Surface Mount with Solder Retention

Frequently asked questions

What is the best replacement for 5046182410?

A pin-compatible alternative within the SlimStack 504618 series would need to match the 0.35 mm pitch, 24 circuits, 2 rows, and 0.6 mm mated stack height, but no such part is confirmed as a direct swap. Check the board footprint and stack height against other 504618 series members before substituting.

What are the specifications of 5046182410?

The 5046182410 is a 24-circuit, 2-row receptacle with a 0.014" (0.35 mm) pitch, 0.024" (0.61 mm) height above board, and a 0.6 mm mated stacking height. It has gold contact finish, surface-mount termination with solder retention, and is packaged in Tape & Reel or Cut Tape.
