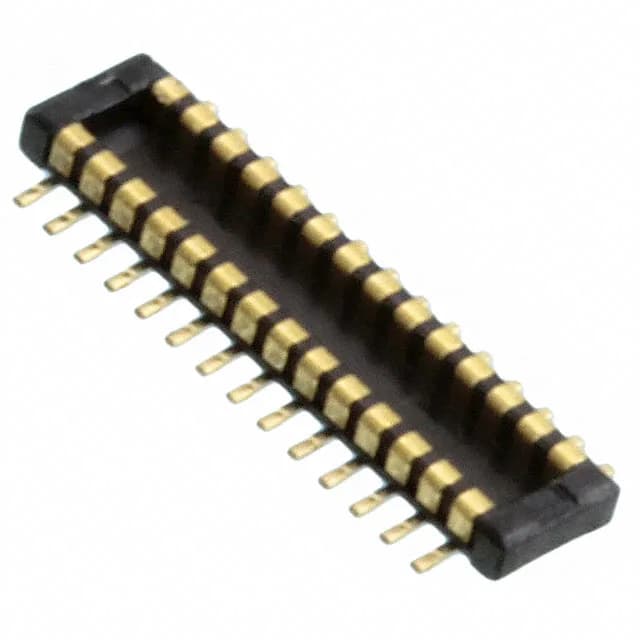

The Molex 5046222410 is a 24-circuit plug from the SlimStack 504622 series, using outer shroud contacts on a 0.014" (0.35mm) pitch in a dual-row arrangement. It is a board-to-board mezzanine interconnect designed for surface-mount assembly, with a mated stacking height of 0.6mm and a height above board of 0.019" (0.48mm). The gold contact finish suits applications requiring moderate mating-cycle life in compact consumer or portable electronics where z-height is at a premium.
The official cross-reference for this part is the 504622-2410, which carries the same series, pitch, position count, and contact finish but is packaged in Box rather than Tape & Reel and remains in Active lifecycle status. The 504622-2410 is a direct functional equivalent for new designs or BOM substitutions where the packaging format is flexible.
Key Specs for Board Layout
At 0.35mm pitch, the pad spacing is tight — the footprint requires precise solder-paste stencil alignment and a controlled reflow profile to avoid bridging between adjacent contacts. The 24 positions across two rows give a compact 12-per-row layout that fits into narrow board-edge keep-out zones.
