Molex 5046930604 — Connector Housings

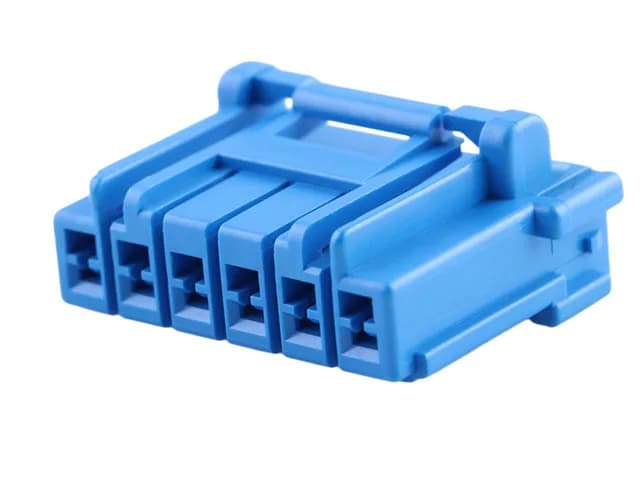

Molex 5046930604 CP-3.3 Receptacle Housing, 6 Pos, 3.30mm

MPN5046930604
Active

Molex CP-3.3 504693 series receptacle housing, 6 positions, 1 row, 0.130" (3.30mm) pitch, free-hanging (in-line), crimp termination, latch holder, blue PBT, -40°C to 105°C.

$0.5400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCP-3.3 504693
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5046930604 specifications
ParameterValue
SeriesCP-3.3 504693
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 105°C
ColorBlue
Insulation materialPolybutylene Terephthalate (PBT)
NoteContacts Not Included
Pitch0.130\" (3.30mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions6

Product details

The Molex 5046930604 is a 6-position receptacle housing from the CP-3.3 504693 series, built for in-line wire-to-wire or wire-to-board harnesses. The 3.30 mm pitch gives it a bit more room between contacts than the common 3.00 mm Micro-Fit spacing — useful when you're running 18-20 AWG and need the extra creepage.

The listing carries a clear note: Contacts Not Included. You'll need the matching CP-3.3 female crimp terminal (Molex 503149 series or equivalent) to populate the 6 cavities. Ordering just the housing and expecting a finished connector is the most common BOM mistake on this part.

The 5046930604 mates with the CP-3.3 series plug header (male pin housing). The single-row 6-position layout keeps the harness slim; the latch holder gives a tactile lock confirmation when mated.

Frequently asked questions

What contacts do I need for 5046930604?

The 5046930604 is a housing only — contacts are not included. You need the matching CP-3.3 series female crimp socket terminal (Molex 503149 series or equivalent) to populate the 6 cavities.

What is the mating connector for Molex 5046930604?

The 5046930604 receptacle mates with the CP-3.3 series male pin header housing. Both halves use the 3.30 mm pitch and latch holder fastening.
