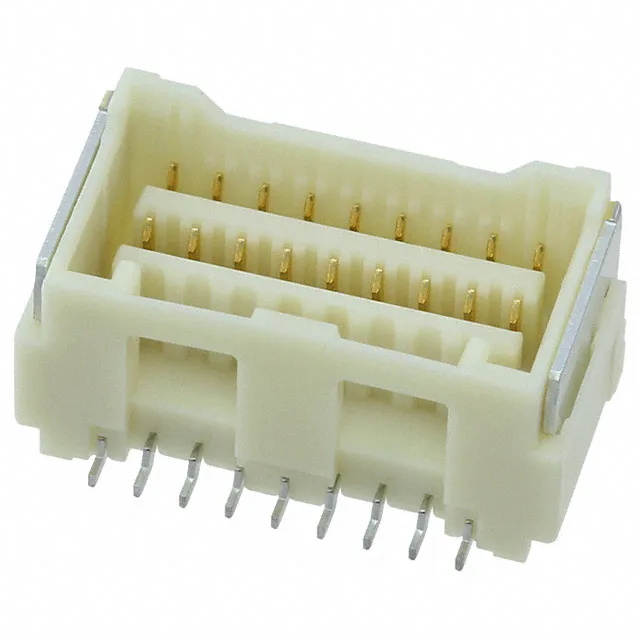

Molex 5054061860
MPN5054061860
Obsolete
$2.8612Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CLIK-Mate 505406 |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Beige |
| Insulation height | 0.344\" (8.75mm) |
| Insulation material | Resin |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Rows | 2 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 18 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
