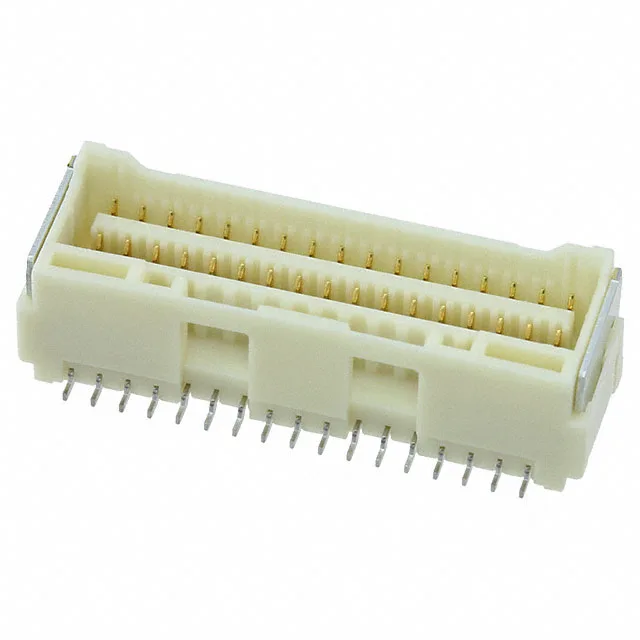

Molex 5054063460 CLIK-Mate Receptacle, 34 Pos, 1.50mm Pitch

MPN5054063460
Obsolete

Molex CLIK-Mate 505406 series, 34-position dual-row receptacle, 1.50mm pitch, SMT with solder retention, gold-plated mating contacts, UL94 V-0 beige housing, -40°C to 105°C.

$4.2397Ref. price · indicative, final on quote
5054063460 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5054063460 Technical Specifications
ParameterValue
SeriesCLIK-Mate 505406
GenderForked
Mounting typeSurface Mount
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBeige
Insulation height0.344\" (8.75mm)
Insulation materialResin
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Lighting, Medical
Rows2
Pitch0.059\" (1.50mm)
Positions34
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating8.00µin (0.203µm)

Product details

34-Position, 1.50mm Pitch — Board-to-Wire Fit

The 5054063460: The beige insulator colour is standard for the CLIK-Mate family.

Obsolete — Sourcing via Independent Channels

Molex has marked the 5054063460 as Obsolete. If your BOM still calls out this exact order code, the pitch (1.50mm), circuit count (34), dual-row layout, and SMT solder-retention footprint must match the existing board layout exactly — a board spin is required for any alternative.

This receptacle mates with a CLIK-Mate 505406 series plug header (crimp or IDC type). Termination is solder for the board side; the mating side uses forked contacts that accept the pin header terminals. The tin-plated post finish (39.4µin) is standard for the solder tail.

Frequently asked questions

How can I order the Molex 5054063460 or check availability?

The 5054063460 is Obsolete per Molex. No stock-holding claim; sourced per request.

What is the pitch of the 5054063460 and what does it mate with?

The pitch is 1.50mm (0.059"). This is a dual-row, 34-position receptacle that mates with a CLIK-Mate 505406 series plug header. The latch holder fastening type secures the pair.

Is there a direct replacement for the Molex 5054063460?

No official replacement or pin-compatible alternative is recorded from Molex. Because the part is Obsolete, any substitute would require a board layout change — confirm the 1.50mm pitch, 34 positions, and SMT footprint before committing.
