Molex 5054332051 — Pin Headers

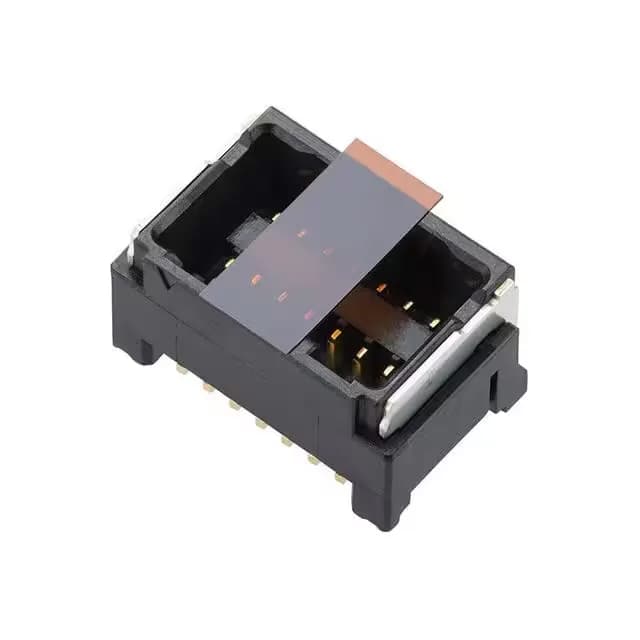

Molex 5054332051 Micro-Lock PLUS Header, 20 Pos, 1.25 mm

MPN5054332051
Active

Molex Micro-Lock PLUS 505433 series, 5054332051, Board to Cable/Wire header, 20 circuits, 2 rows, 1.25 mm pitch, SMT, shrouded 4-wall, gold-plated contacts, latch holder, UL94 V-0, -40°C to 105°C.

$3.6700Ref. price · indicative, final on quote
Molex 5054332051 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-Lock PLUS 505433
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5054332051 key specifications
ParameterValue
SeriesMicro-Lock PLUS 505433
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeLatch Holder
Voltage rating50VAC/DC
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.285\" (7.25mm)
Insulation materialPolyamide (PA), Nylon

All specifications

5054332051 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
FeaturesSolder Retention
PackageTape & Reel (TR) Cut Tape (CT)
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial
Contact shapeSquare
Rows2
Pitch0.049\" (1.25mm)
Positions20
Contact finish - postGold
Contact finish - matingGold
Contact finish thickness - post30.0µin (0.76µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board Layout Fit: 1.25 mm Pitch, 20 Circuits, SMT

The 5054332051: The 1.25 mm pitch sets a tight board footprint — routing one trace between pads on a standard 1 oz copper layer is feasible with a 0.2 mm trace width.

Mates with the Micro-Lock PLUS 505433 receptacle housing (crimp terminals sold separately). Accepts the matching crimp terminal for 20-30 AWG wire, depending on the receptacle part selected.

Voltage rating is 50 VAC/DC. Suitable for automotive, general purpose, and industrial applications per the series listing.
