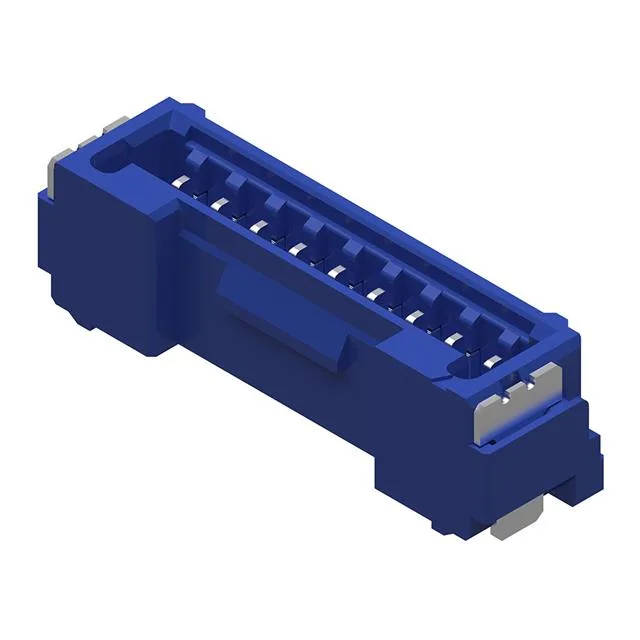

Molex Micro-Lock PLUS 505568 header, order code 5055680674, 6 positions, single row, 1.25 mm pitch, 50 VAC/DC, tin-plated mating contacts, surface-mount, solder termination.
| Parameter | Value |
|---|---|
| Series | Micro-Lock PLUS 505568 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 50VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Blue |
| Insulation height | 0.165\" (4.20mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Mated stacking heights | 7.4mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Box |
| Features | Pick and Place, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
The 5055680674 is the 6-circuit member of Molex's Micro-Lock PLUS 505568 board-to-wire header line, a single-row shrouded header at 1.25 mm pitch. Tin-plated mating contacts rated 50 VAC/DC; the surface-mount solder termination and pick-and-place feature support automated assembly.
The header uses a UL94 V-0 rated polyamide (nylon) housing and carries tin-plated brass contacts. RoHS and REACH compliance documentation is available from Molex for the series.
