9-position board-to-wire header

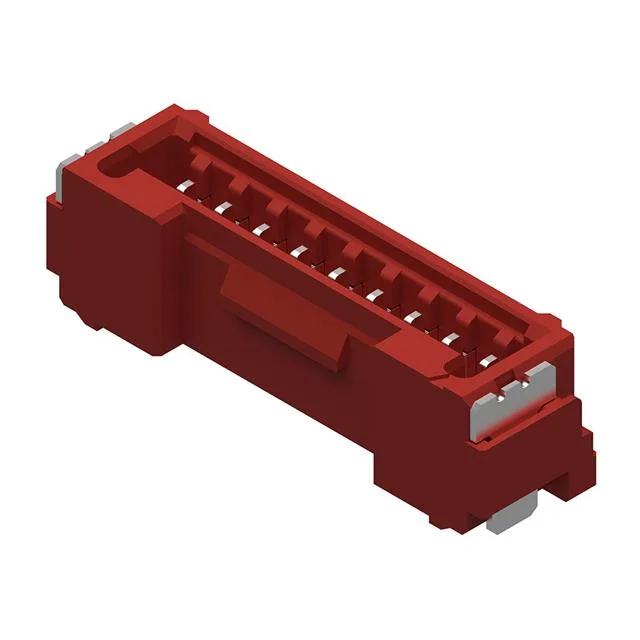

The 5055680972 is the 9-circuit member of the Molex Micro-Lock PLUS 505568 header series, a shrouded 4-wall board-to-cable/wire header in a single-row configuration.
Molex Micro-Lock PLUS 505568 header, order code 5055680972, 9 positions, single row, 1.25 mm pitch, 50 VAC/DC, tin-plated mating contacts, surface-mount, solder termination.
$0.2300Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-Lock PLUS 505568 |
| Gender | Male Pin |
| Mounting type | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 50VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Red |
| Insulation height | 0.165\" (4.20mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Mated stacking heights | 7.4mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Box |
| Features | Pick and Place, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
Product details
Frequently asked questions
How do I get current pricing and availability for the 5055680972?
Contact a distributor with the order code 5055680972 for a current quote.
What is the listed style and series of the 5055680972?
The connector style is Board to Cable/Wire, and the series is Micro-Lock PLUS 505568.
