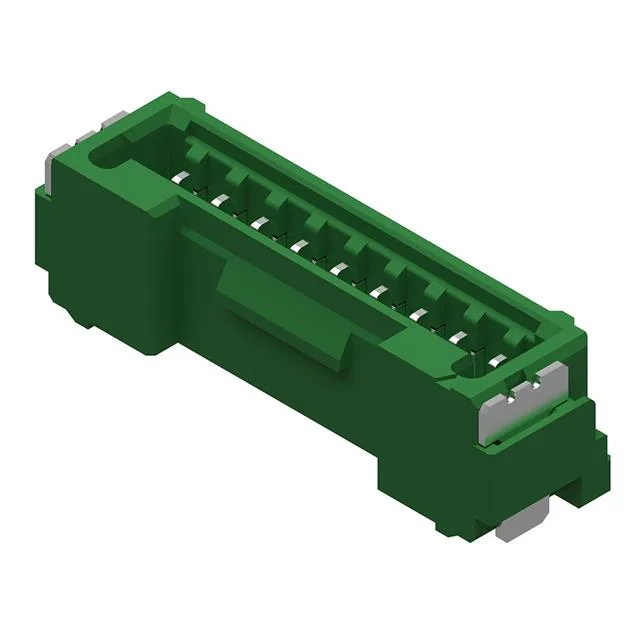

Molex 5055680976 Micro-Lock PLUS Header, 9 Pos

MPN5055680976
Active

Molex Micro-Lock PLUS 505568 series, 9-position single-row SMT header, 1.25 mm pitch, shrouded 4-wall, push-pull fastening, tin contacts, 50 VAC/DC, -40°C to 105°C, UL94 V-0.

$0.2300Ref. price · indicative, final on quote
5055680976 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5055680976 Technical Specifications
ParameterValue
SeriesMicro-Lock PLUS 505568
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typePush-Pull
Voltage rating50VAC/DC
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorGreen
Insulation height0.165\" (4.20mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled
Mated stacking heights7.4mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBox
FeaturesPick and Place, Solder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial
Contact shapeSquare
Rows1
Pitch0.049\" (1.25mm)
Positions9
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating39.4µin (1.00µm)

Product details

1.25 mm Pitch, 9-Position SMT Header — Micro-Lock PLUS 505568

The 5055680976 is a 9-position, single-row, surface-mount header from the Molex Micro-Lock PLUS 505568 series.

7.4 mm Mated Stack Height — Board-to-Cable Clearance

This is a fixed dimension — the header and its matching receptacle together occupy that vertical space. For enclosures with tight lid clearance, confirm the 7.4 mm plus any cable bend radius fits within the available headroom. For high-vibration environments, the Micro-Lock PLUS series offers a positive-lock variant; verify the mating half's locking feature before committing.

SMT Termination with Solder Retention and Pick-and-Place

The pick-and-place cap (included in the box packaging) allows automated assembly without skewing. Tin is suitable for moderate mating cycles (typically 25–50 cycles) in non-corrosive environments.

The base product number is 505568, covering the Micro-Lock PLUS 505568 series. The full 10-digit order code specifies the 9-position, single-row, SMT, tin-plated configuration. The box packaging (reel or tube not specified) is suitable for automated assembly lines.
