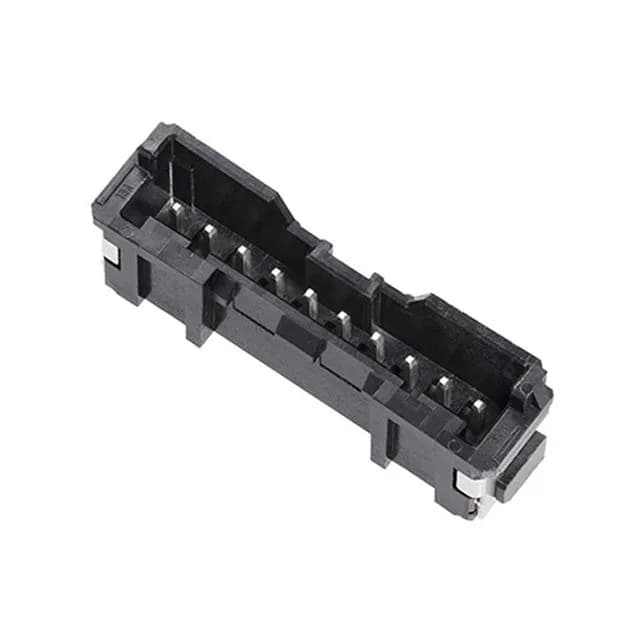

Molex Micro-Lock PLUS 505575 series, 7-position single-row header, 2.00 mm pitch, SMT, shrouded 4-wall, locking ramp, tin-plated contacts, UL94 V-0, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Micro-Lock PLUS 505575 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.339\" (8.61mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Mated stacking heights | 11.1mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Features | Solder Retention |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
This mid-range height leaves room for wire routing under the connector body while keeping the overall assembly low enough for most enclosure depths. The 0.339-inch (8.61 mm) insulation height of the header alone gives a sense of the vertical space the connector occupies before the receptacle is added.
This header mates with Micro-Lock PLUS receptacle housings from the same 505575 series, which accept the matching crimp terminals.
