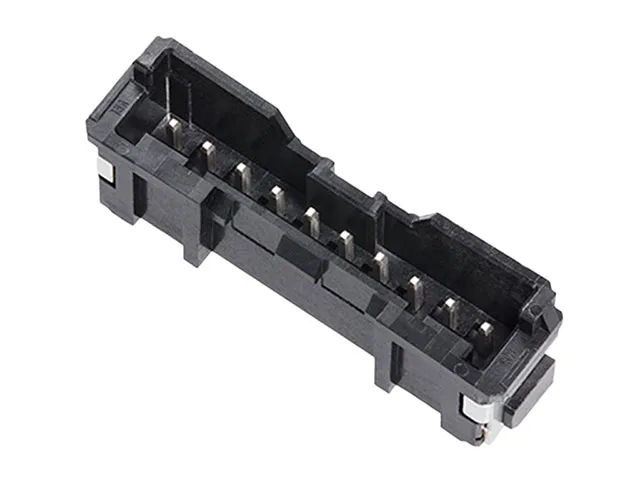

Molex Micro-Lock PLUS 505575 series, 10-circuit single-row header, 2.00mm pitch, surface mount, locking ramp, tin-plated contacts, UL94 V-0, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Micro-Lock PLUS 505575 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.339\" (8.61mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Mated stacking heights | 11.1mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
The 2.00mm pitch ensures the receptacle footprint aligns directly with the header's pinout. The solder retention feature (two small barbs on the housing base) anchors the header during wave or reflow soldering, preventing float.
The pitch is 2.00mm (0.079 inches).
Yes, the header is rated for automotive, general purpose, and industrial use.
It mates with the Micro-Lock PLUS receptacle housing (sold separately) that uses the matching crimp terminals.
