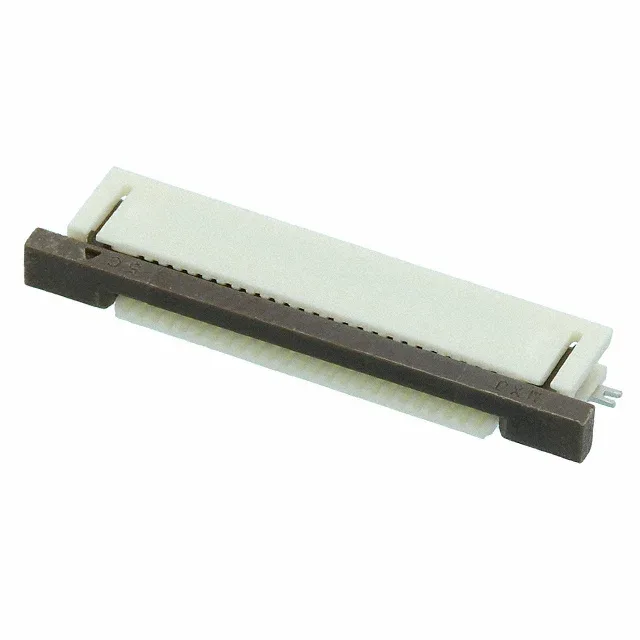

CONN FFC BOTTOM 25POS 0.50MM R/A
$3.28Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Easy-On 52437 |
| Mounting type | Surface Mount, Right Angle |
| Cable end type | Straight, Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -40°C ~ 85°C |
| Housing color | White |
| Actuator color | Brown |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Actuator material | Polyphenylene Sulfide (PPS), Glass Filled |
| Height above board | 0.079\" (2.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 25 |
Sourcing this connector
Molex 524372571 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Molex and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
