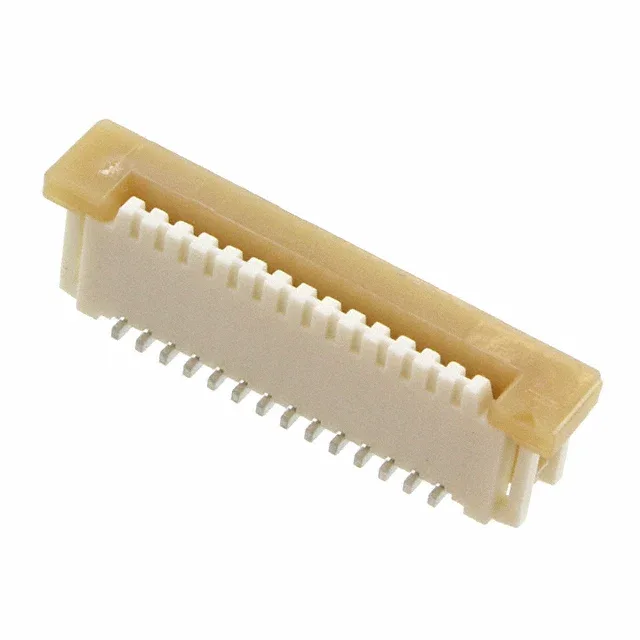

Molex 526101472
MPN526101472
Active
CONN FPC VERT 14POS 1.00MM SMD
$1.95Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEasy-On 52610
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Easy-On 52610 |
| Mounting | Surface Mount |
| Cable end type | Tapered |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 125V |
| Current rating | 1A |
| Operating temperature | -40°C ~ 85°C |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA46), Nylon 4/6 |
| Actuator material | Polyphenylene Sulfide (PPS) |
| Height above board | 0.226\" (5.74mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 30 |
| Contact finish | Gold |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 14 |
| Contact finish thickness | 3.94µin (0.10µm) |
