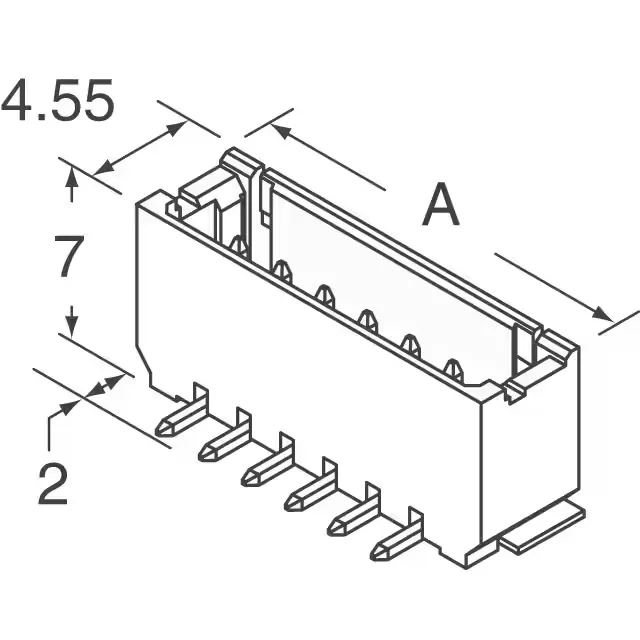

Molex 554600872
MPN554600872
Active
CONN HEADER SMD 8POS 2MM
$2.97Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMi II 55460
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mi II 55460 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR); Cut Tape (CT) |
All specifications
| Parameter | Value |
|---|---|
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
