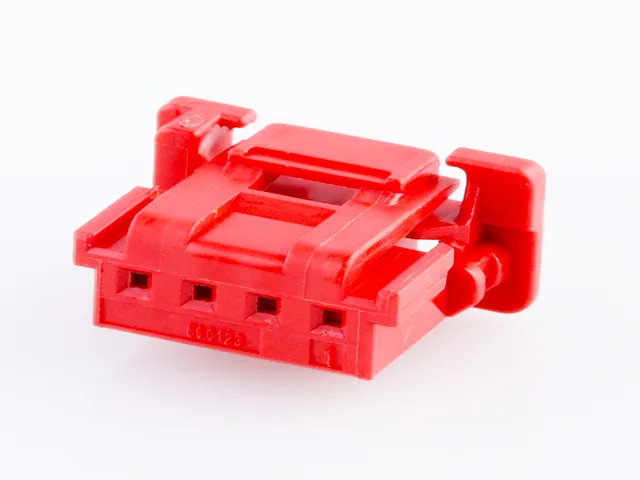

5601230402 — Molex product photo
Molex

Molex DuraClik 5601230402 Receptacle Housing, 4 Pos, 2.00mm

MPN5601230402
Active

Molex DuraClik 560123, Receptacle Housing, 4 Positions, 2.00mm Pitch, 1 Row, Crimp Termination, Free Hanging, Red PBT, Latch Holder

$0.2900Ref. price · indicative, final on quote
5601230402 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5601230402 Technical Specifications
ParameterValue
SeriesDuraClik 560123
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 130°C
ColorRed
Insulation materialPolybutylene Terephthalate (PBT)
Pitch0.079\" (2.00mm)
PackageBag
Rows1
Contact terminationCrimp
Positions4

Product details

4-Position DuraClik Receptacle for Wire-to-Board Harnesses

The Molex 5601230402 is a 4-circuit receptacle housing from the DuraClik 560123 series, designed for wire-to-board interconnect in space-constrained harness assemblies. Its 2.00 mm pitch keeps the footprint small while still allowing routing for 20-24 AWG wire, and the single-row layout simplifies crimp-and-stuff assembly.

Locking and Termination Details

The PBT housing material (Polybutylene Terephthalate) holds up to the 130°C upper limit without creeping, which is the usual failure mode for cheaper nylon housings at sustained temperature.

Frequently asked questions

What is the mating plug for Molex 5601230402?

The 5601230402 is a receptacle housing; it mates with the corresponding DuraClik 560123 series plug (male header). The mating header will have the same 2.00 mm pitch and 4 circuits, with a latch that engages the housing's latch holder.
