Molex 5601230801 — Connector Housings

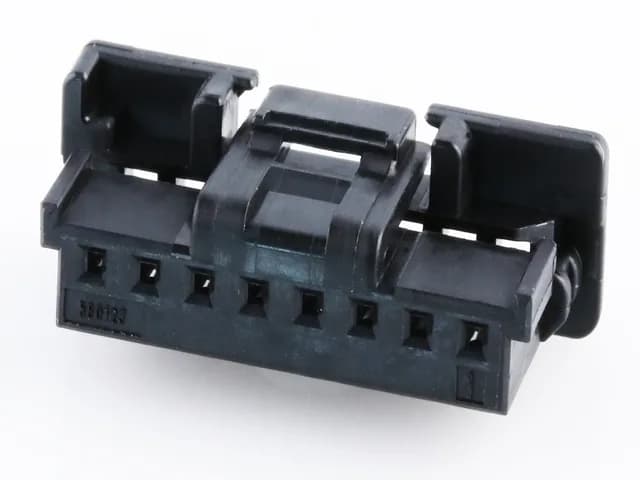

Molex DuraClik 5601230801 Receptacle Housing, 8 Pos, 2.00mm

MPN5601230801
Active

Molex DuraClik 560123 series, 5601230801 receptacle housing, 8 positions, 2.00mm pitch, single row, free-hanging (in-line), crimp termination, latch holder fastening, black PBT housing.

$0.4700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDuraClik 560123
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5601230801 specifications
ParameterValue
SeriesDuraClik 560123
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 130°C
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT)
Pitch0.079\" (2.00mm)
PackageBag
Rows1
Contact terminationCrimp
Positions8

Product details

The Molex 5601230801 is an 8-circuit, single-row receptacle housing from the DuraClik 560123 series, pitched at 2.00 mm.

Latch Holder Retention — Why It Matters for the Harness

This is a vibration-resistant mate — the latch prevents the connector from walking loose under machine or vehicle shake. For a harness builder, this translates to fewer pull-test failures and a more repeatable assembly process compared to a friction-only housing.

The bag packaging (bulk) is standard for housing-only orders; tape-and-reel is not offered for this part, so plan for hand-feeding or vibratory bowl feed if automating the assembly line.

Frequently asked questions

Where can I buy 5601230801?

The 5601230801 is sourced to order through independent distribution. Submit an RFQ for current pricing and availability — confirmed at quote time.

What contacts work with the 5601230801 housing?

The 5601230801 accepts female socket crimp terminals from the DuraClik 560123 series. The exact terminal part number depends on wire gauge — typically 20–26 AWG. Use the Molex 560123 series crimp terminal datasheet to match the wire size to the correct order code.
