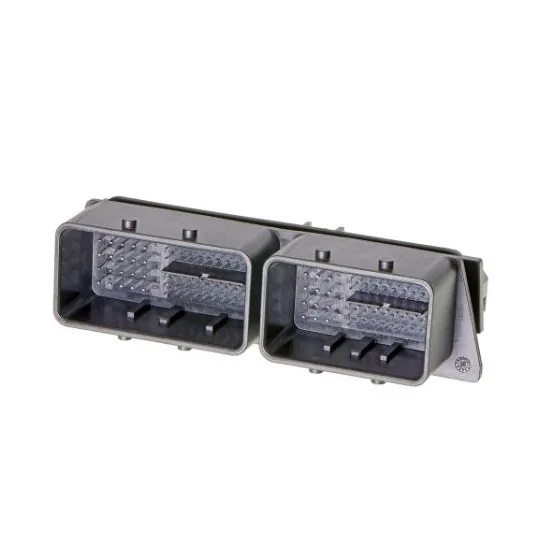

Molex Compactus 560134 header, order code 5601341462, 146 positions, 6 rows, 5.00 mm pitch, 15 A per contact, 250 V, tin-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Compactus 560134 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250V |
| Current rating | 15A per Contact |
| Operating temperature | -40°C ~ 120°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 1.193\" (30.30mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 6 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 146 |
| Row spacing - mating | 0.142\" (3.60mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The 5601341462 is the 146-circuit member of Molex's Compactus 560134 board-to-wire header line. It carries tin-plated mating contacts rated 15 A per contact at 250 V and mounts through-hole right-angle with solder termination.
Six rows at 0.142" (3.60 mm) row spacing pack 146 positions into a shrouded 4-wall housing — the row pitch and full shrouding reduce the risk of mis-mating during cable assembly.
