Molex 5601514822 — Connector Housings

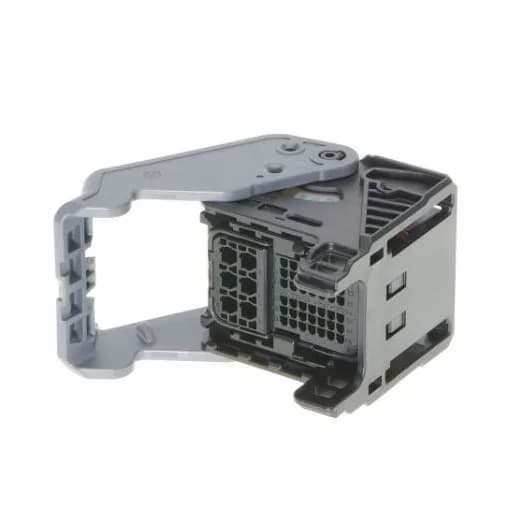

Molex 5601514822 Compactus Receptacle Housing, 42 Pos

MPN5601514822
Active

Molex Compactus 56015 series, 5601514822 receptacle housing, 42 positions, free-hanging (in-line), lever lock, sealed with cap, crimp termination, black PBT, bulk.

$10.5200Ref. price · indicative, final on quote
Molex 5601514822 datasheet (PDF)
RoHSROHS3 Compliant
SeriesCompactus 56015
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5601514822 specifications
ParameterValue
SeriesCompactus 56015
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLever Lock
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
PackageBulk
FeaturesCap (Cover), Sealed
Contact terminationCrimp
Positions42

Product details

42-Position Sealed Receptacle Housing for Harness Builds

The Molex 5601514822 is a 42-position receptacle housing from the Compactus 56015 series, designed for free-hanging (in-line) wire harness applications where a sealed, vibration-resistant interconnect is needed. It uses a lever lock fastening system for positive mating and unmating without tools, and includes a cap (cover) that seals the connector when unmated.

Sealed Construction with Lever Lock

The cap (cover) and sealed construction make this housing suited for environments where moisture, dust, or washdown is a concern — typical for agricultural, construction, or outdoor power equipment harnesses.

The buyer must source the matching crimp terminals for the wire gauge required by the application. The 42-position count means the harness builder will need 42 individual contacts and a suitable crimp tool.

Frequently asked questions

Is Molex 5601514822 a sealed receptacle housing?

Yes, the 5601514822 is a sealed receptacle housing — it includes a cap (cover) and is listed with 'Sealed' as a feature, making it suitable for outdoor or washdown environments.

What contacts are compatible with the 5601514822 housing?

The housing accepts female socket contacts terminated via crimp. Contacts are not included with the housing and must be ordered separately. The exact terminal part number depends on the wire gauge; refer to the Compactus 56015 series crimp terminal offerings.
