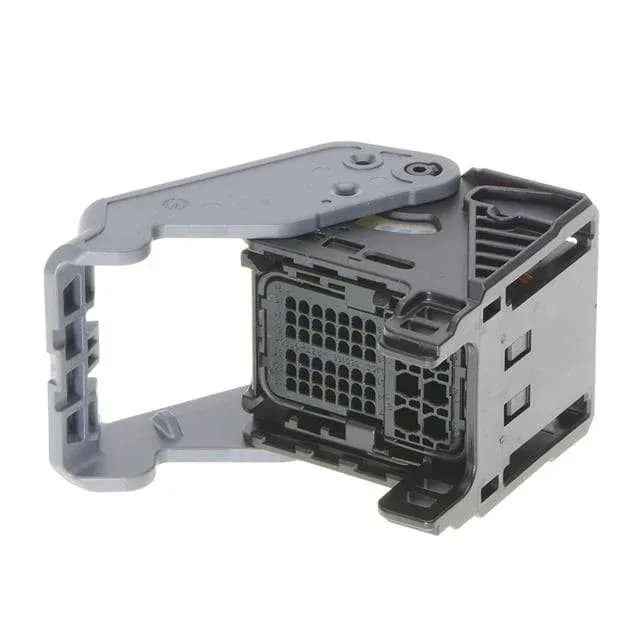

48-Way Free-Hanging Plug with Lever Lock
It uses female socket contacts terminated by crimping, and the housing secures the mating pair with a lever lock — a positive-action latch that holds the connection against vibration without relying on a secondary clip or screw. The black PBT glass-filled housing gives it the dimensional stability and flame resistance expected in industrial and automotive harness environments.
Contact Termination and Mating Half
The 5601514832 accepts crimp-terminated female socket contacts — the 2.8 side terminal size listed in the description points to a 2.8 mm blade width common in the Compactus range. The mating half is a male header or receptacle housing from the same 56015 series that carries the corresponding 2.8 mm male tabs. The lever lock on this plug engages with a mating feature on the header to pull the pair together and hold them under load; it releases by lifting the lever, not by prying.
