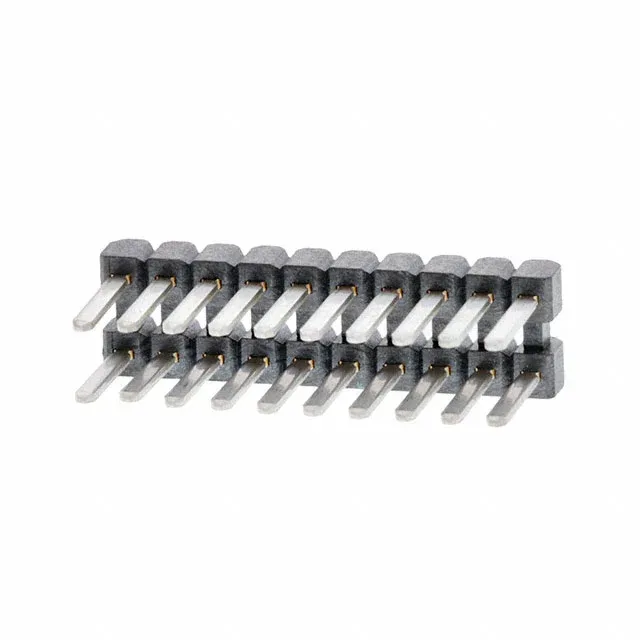

Molex 757571401
MPN757571401
Active
CONN HEADER VERT 20POS 3.5MM
$4.85Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMX150 75757
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MX150 75757 |
| Type | Male Blade |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Cartridge Brass |
| Insulation color | Black |
| Insulation height | 0.177\" (4.50mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.138\" (3.50mm) |
| Positions | 20 |
| Row spacing - mating | 0.236\" (6.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.738\" (18.75mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.441\" (11.20mm) |
| Contact finish thickness - post | 59.0µin (1.50µm) |
| Contact finish thickness - mating | 59.0µin (1.50µm) |
