What it is

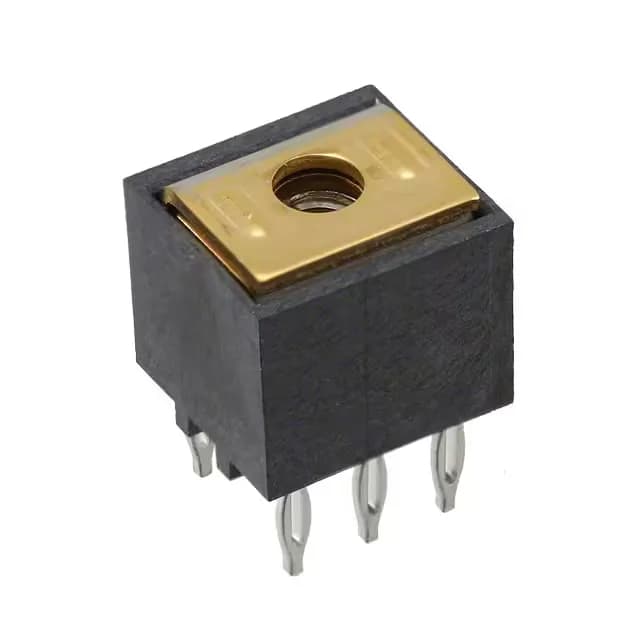

The Molex 760010006 is the 6-circuit member of the EXTreme Zpower 76001 series — a press-fit screw-terminal power tap designed for high-current bus-bar and backplane power distribution inside industrial equipment frames. Gold-plated copper alloy contacts are rated 30 A per circuit, and the LCP insulation housing carries that current at the panel level without the connector becoming the thermal ceiling. M3 steel screws accept the corresponding hardware on the bus bar or cable eye; the press-fit tail solders into the PCB through-hole without wave solder flux intrusion into the contact zone.
What the ratings mean
The 30 A per circuit rating is the sustained-current ceiling under the LCP thermal limit — not a momentary pulse spec. For a 6-position bus tap this means each pin independently carries 30 A, which is the relevant figure when the harness branches to multiple loads. Gold plating governs mating-cycle life at the screw interface and contact fretting resistance under vibration — the 6-pin press-fit tail is the board-side termination, not a hot-pluggable contact system. The M3 screw size tells you the hardware class; confirm the bus-bar thickness and gland clearance fit before specifying.
Lifecycle and sourcing posture
The 760010006 carries Active product status with ROHS3 Compliant designation — the standard sourcing posture for an in-production industrial power component. No official successor or cross-reference appears in this series ledger. The 6-pin position count, 30 A rating, and press-fit termination define the BOM slot; confirm those three parameters against the existing design before committing an RFQ.
