What it is and where it sits in the series

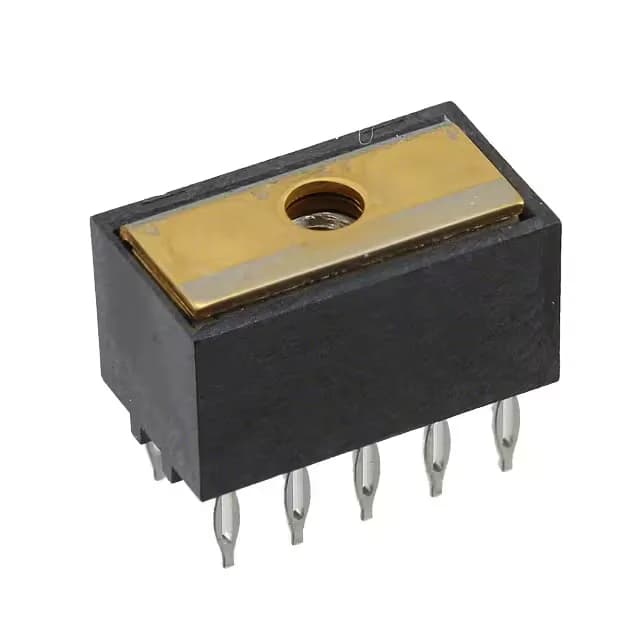

The Molex 760010010 is the 10-circuit member of the EXTreme Zpower 76001 series — a press-fit, through-hole power tap built around an M3 screw terminal that routes high-current bus bars directly to the PCB. Gold-plated copper alloy contacts at 50 A per circuit make this a power-distribution node, not a signal connector, so the 50 A headline only earns its meaning against the 10-pin circuit count and the LCP insulation body that governs thermal headroom.
What the ratings mean for the fit
50 A per circuit is the sustained-current ceiling through the copper alloy contact under load — the gold plating preserves low insertion resistance across the full mating cycle life, which matters in power-distribution applications where the tap stays mated for months or years at a time. The M3 screw size is the mechanical interface to the bus bar or cable eye; confirm the termination hardware and the wire gauge range the application calls for before committing, since a power tap this current demands a properly sized conductor. Press-fit termination through-hole means the body seats into plated-through holes without wave or reflow soldering — the press-fit tail carries the current path while mechanical interference holds the body in place. This suits a board assembly flow where the power bus section is populated before the reflow pass, and the through-hole format gives the connector a lower profile compared to a bolted panel mount.
