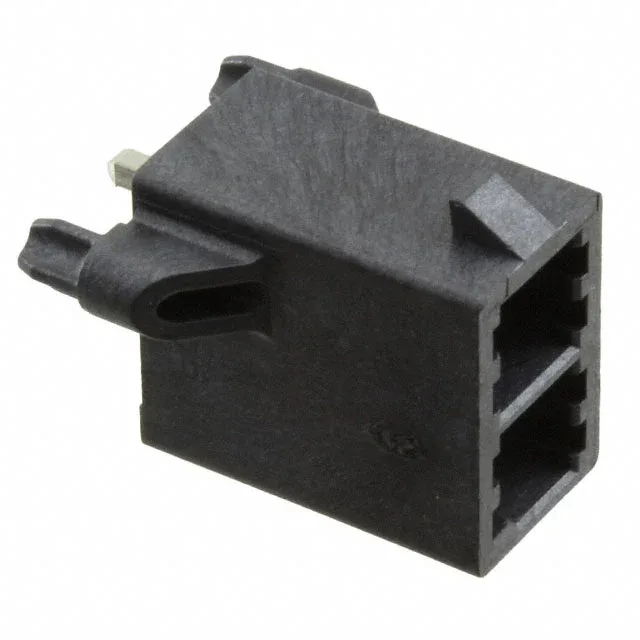

Molex 768290002
MPN768290002
Active
CONN HEADER VERT 2POS
$1.05Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMega-Fit
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mega-Fit |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Copper |
| Insulation color | Black |
| Insulation height | 0.583\" (14.80mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Positions | 2 |
| Row spacing - mating | 0.224\" (5.70mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.147\" (3.73mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
