Molex 782291002

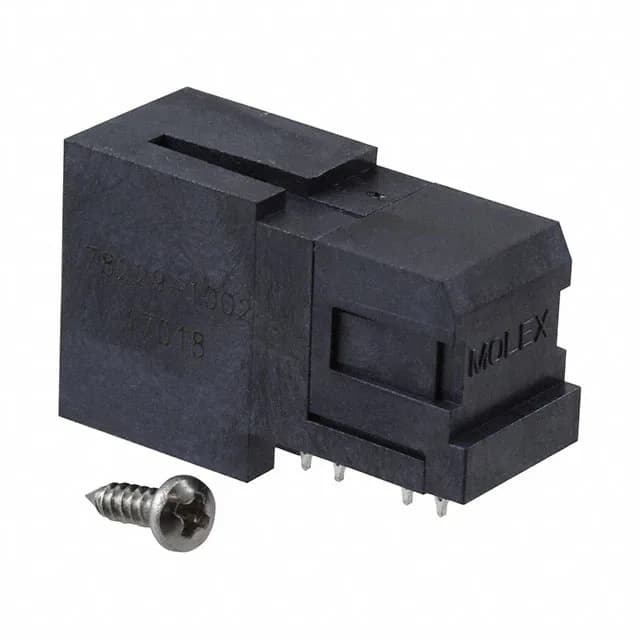

Molex GbX I-Trac 782291002 Header, 2-Pos, 40A, Press-Fit

MPN782291002
Active

Molex GbX I-Trac 78229 series header, 782291002, male blades, 2 positions, 2 rows, 40 A per circuit, 250 V, board edge through-hole right angle press-fit, gold 30.0 µin contacts, board guide, UL94 V-0 black housing, tray.

$12.87Ref. price · indicative, final on quote
Molex 782291002 datasheet (PDF)
RoHSROHS3 Compliant
SeriesGbX I-Trac 78229
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

782291002 specifications
ParameterValue
SeriesGbX I-Trac 78229
MountingBoard Edge, Through Hole, Right Angle
Connector typeI-Trac, Hold Down Left
Voltage rating250V
Current rating40A
Operating temperature-20°C ~ 85°C
ColorBlack
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Guide
TerminationPress-Fit
Contact finishGold
Rows2
Positions2
Contact layout, typical2 Power
Contact finish thickness30.0µin (0.76µm)

Product details

GbX I-Trac Power Header — 2-Position, 40 A, Press-Fit

The Molex 782291002 is a 2-position male blade header from the GbX I-Trac 78229 series, designed for board-edge power distribution in backplane and midplane assemblies. The press-fit termination and right-angle orientation let it mount directly into a through-hole backplane without soldering, reducing assembly thermal stress.

Mounting and Termination — Backplane Fit

This header mounts to the board edge with a right-angle orientation, meaning the mating axis is parallel to the PCB plane — standard for a daughtercard sliding into a backplane slot. The press-fit termination eliminates solder, which is preferred in high-reliability backplane builds where rework or field replacement of individual connectors is needed.

Active lifecycle status, ROHS3 compliant.

Frequently asked questions

How do I get current pricing and availability for 782291002?

Current pricing and availability are confirmed at quote time. Submit an RFQ against your target quantity and delivery window for a firm quote through independent distribution.

Will 782291002 drop into a panel specified around 465629302 without rewiring?

No. The 465629302 is an EXTreme Ten60Power receptacle with female blade sockets, a different connector family and mating interface. The 782291002 is a male blade header from the GbX I-Trac series and is not a direct mechanical or electrical swap.

What compliance documentation does Molex provide for 782291002?

The 782291002 is ROHS3 compliant. The housing material carries a UL94 V-0 flammability rating. Full compliance documentation, including the RoHS certificate, is available from the manufacturer.
