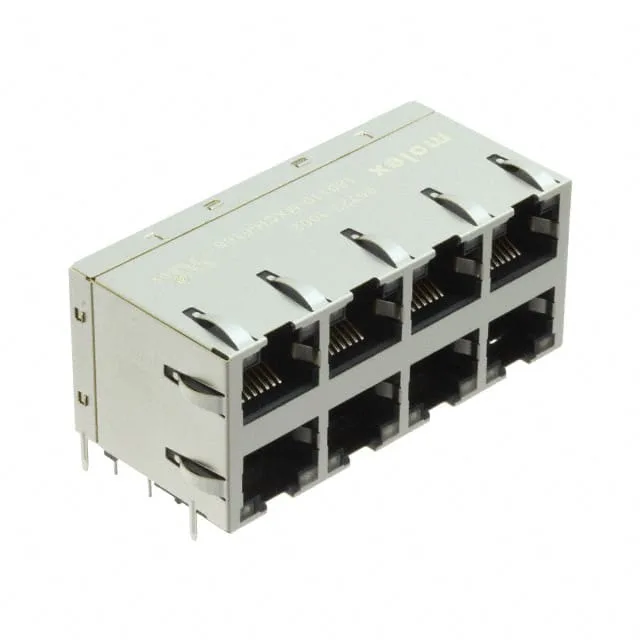

Molex 857271002
MPN857271002
Active
CONN JACK 8PORT 1000 BASE-T PCB
$47.12Ref. price · indicative, final on quote
Series85727
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 85727 |
| Mounting | Through Hole |
| Connector type | RJ45 |
| Operating temperature | 0°C ~ 70°C |
| LED color | Green, Orange - Green |
| Shield material | Brass |
| Contact material | Copper Alloy |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Height above board | 1.002\" (25.46mm) |
| Package | Tray |
| Features | Board Guide |
| Shielding | Shielded, EMI Finger |
All specifications
| Parameter | Value |
|---|---|
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Applications | 10/100/1000 Base-T, AutoMDIX |
| Tab direction | Up and Down |
| Contact finish | Gold |
| Rows | 2 |
| Number of ports | 8 |
| Contact finish thickness | 30.0µin (0.76µm) |
| Number of cores per jack | 8 |
