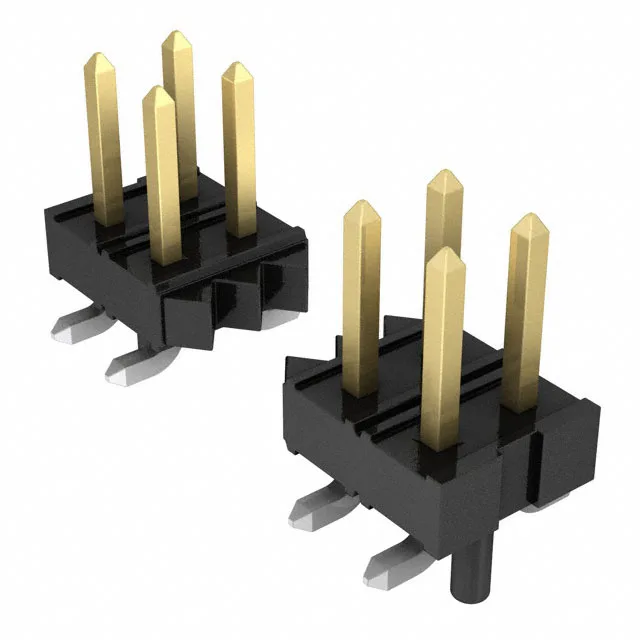

Molex 877590876
MPN877590876
Active
CONN HEADER SMD 8POS 2MM
$1.7Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMilli-Grid 87759
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87759 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide, Pick and Place |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.150\" (3.81mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
