Molex 878310643
MPN878310643
Active

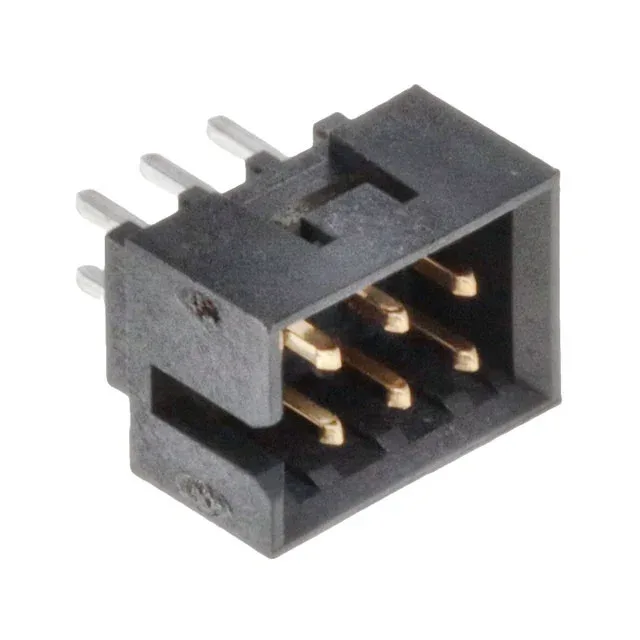

CONN HEADER VERT 6POS 2MM
$1.29Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMilli-Grid 87831
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87831 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 125V |
| Current rating | 2A |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.252\" (6.40mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.098\" (2.50mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.141\" (3.60mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
