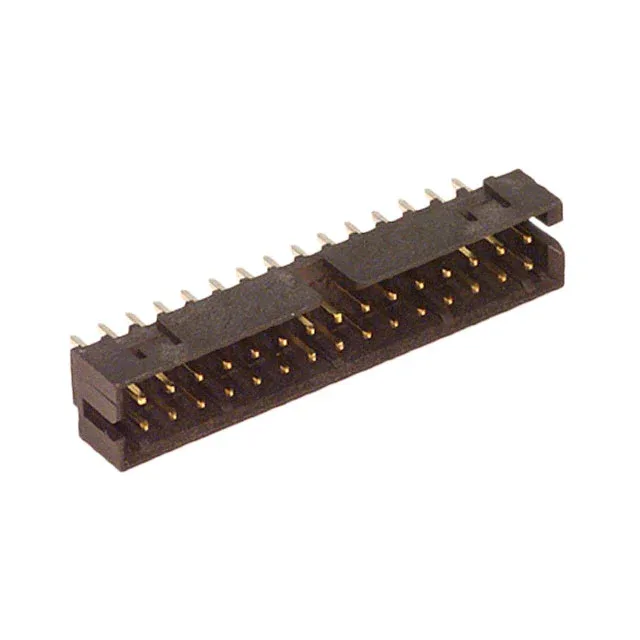

CONN HEADER VERT 30POS 2MM
$4.0Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87831 |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 125V |
| Current rating | 2A |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.252\" (6.40mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 30 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.098\" (2.50mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.141\" (3.60mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Sourcing this connector
Molex 878313020 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Molex and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
