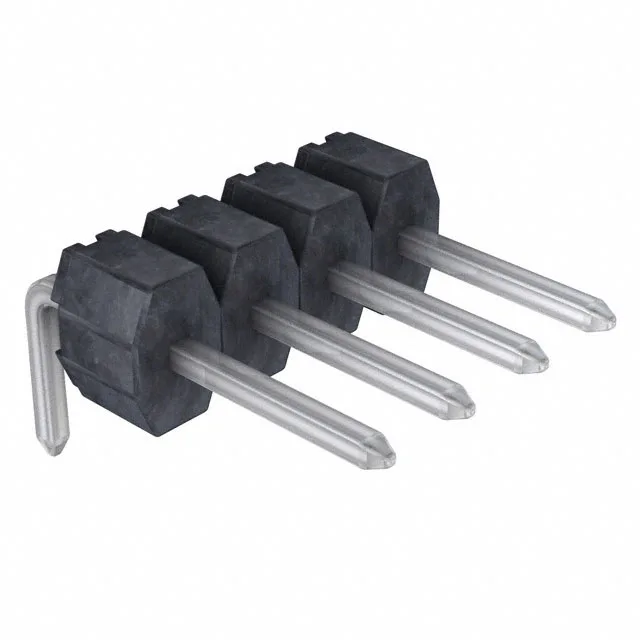

Molex 901210124
MPN901210124
Active
CONN HEADER R/A 4POS 2.54MM
$0.94Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesC-Grid III 90121
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | C-Grid III 90121 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.142\" (3.60mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.266\" (6.75mm) |
| Contact finish thickness - mating | 118.1µin (3.00µm) |
